Endpoint protocols and runtime

This page covers App-visible protocol and lifecycle rules. For exact runtime function signatures and callback guarantees, read the installed public SDK. Every declaration must also follow the schema documentation invariants.

Unless a block is explicitly labeled a non-copyable schematic, its declarations are copyable into an App whose package header already has the required natural label and description. The data-name example includes that package header because its package-level resource declaration depends on the header.

Declaring an Endpoint

A server Endpoint is conceptually equivalent to a conventional service endpoint: it is the interface through which an App provides a defined set of capabilities to clients. Its protocol Union declares the requests, responses, and subscription messages that clients can exchange. A client Endpoint binds to a compatible server Endpoint, and Libertas routes those interactions under the applicable access controls.

An Endpoint field references a protocol Union. EndpointServer marks the App as the serving side; absence means client-side use.

/**
 * Equipment status settings
 * Describes the equipment and service used to read its current condition.
 */
export interface Configuration {
    /**
     * Monitored equipment
     * The user chooses the equipment whose condition will be reported.
     */
    device: LibertasDevice;

    /**
     * Equipment status service
     * The App provides this service so permitted users can read the selected
     * equipment's current condition.
     * @LibertasEndpointSchema(StatusProtocol)
     * @LibertasEndpointServer
     * @LibertasEndpointBaseObjects("$.device")
     */
    endpoint: LibertasEndpoint;
}

/// Equipment status settings
/// Describes the equipment and service used to read its current condition.
#[derive(LibertasExport, LibertasAvroDecode)]
pub struct Configuration {
    /// Monitored equipment
    /// The user chooses the equipment whose condition will be reported.
    pub device: LibertasDevice,

    /// Equipment status service
    /// The App provides this service so permitted users can read the selected
    /// equipment's current condition.
    #[libertas_endpoint_schema(StatusProtocol)]
    #[libertas_endpoint_server]
    #[libertas_endpoint_base_objects("$.device")]
    pub endpoint: LibertasEndpoint,
}

EndpointBaseObjects uses comma-delimited Libertas Schema Paths to bind an endpoint instance to configuration objects.

On a client Endpoint, Default and Fixed take a developer-package::function task-process identity. Every client first filters server Endpoints by mutual protocol-schema compatibility. Default leaves all compatible choices available. Fixed further restricts choices to servers owned by the named task process and makes its package a mandatory logical App dependency in finalized AppDependencies. Both Endpoint-ID selectors remain editable because one process can expose multiple eligible server instances. If the resulting set is empty, either value identifies the process to provision. Only Fixed forces the package into deployed AppDependencies; the client task pre-creation gate below may nevertheless require installation of the named task process for an absolutely required Endpoint carrying either attribute. These strings are not Endpoint IDs or schema-type references.

Required client task-process dependencies

An App author models only the source contract: a client Endpoint carrying Default or Fixed can become a task-creation prerequisite when that occurrence and its complete path are non-nullable and every ancestor List requires at least one item. Keep the real optionality and List bounds truthful; do not add App code or generated metadata to implement provisioning.

Control clients own the traversal, eligibility, installation, queue, cycle, refresh, cancellation, and Hub-validation behavior. Its single canonical definition is the task pre-creation dependency check.

Use the no-argument @LibertasExcludeUI or #[libertas_exclude_ui] marker on an Endpoint server carrying a resolved ProtocolSchema.

With the marker, Control UI acts as though that Endpoint does not exist. The Hub Control service omits the marked server Endpoint from its UI-device list before grouping devices, so it cannot appear as a root or task child, cannot affect folder cardinality, and cannot contribute LLM tool definitions. The Endpoint remains registered and available to routing, subscriptions, authorization, and administration. The same marker is valid on a Request or SubscriptionRequest variant reachable from an Endpoint protocol Union.

It removes that operation from generated Control UI and Hub LLM tool-definition generation. Admin creation, editing, approval, persistence, Endpoint compatibility, and dependency/assignment calculations continue to use the complete schema rather than the user-facing projection.

Runtime bindings identify an Endpoint server by its resolved ProtocolSchema. If more than one server Endpoint resolves to the same protocol root, every one of those Endpoints must use the same ExcludeUI value. Studio rejects mixed visibility because the runtime binding cannot distinguish those Endpoint declarations. The exact projected Control surfaces and unaffected behavior are defined by the schema attribute contract.

/**
 * Refresh current status
 * The service refreshes equipment status in the background without offering
 * this activity as a user action.
 * @LibertasRequest
 * @LibertasExcludeUI
 */
export interface InternalRefresh { kind: 0; }

/**
 * Background refresh completed
 * Reports when the background refresh finished.
 * @LibertasResponse
 */
export interface InternalRefreshComplete {
    kind: 1;
    /**
     * Completion time
     * The instant when the background refresh completed.
     */
    completed_at: LibertasDateTime;
}

/**
 * Background status activities
 * Describes automatic status refreshes and their completion.
 */
export type StatusProtocol = InternalRefresh | InternalRefreshComplete;

/**
 * Background status settings
 * Describes the service used to keep equipment status current automatically.
 */
export interface Configuration {
    /**
     * Background status service
     * The App provides this service to refresh equipment status without
     * presenting a separate user choice.
     * @LibertasEndpointSchema(StatusProtocol)
     * @LibertasEndpointServer
     * @LibertasExcludeUI
     */
    internalEndpoint: LibertasEndpoint;
}

/// Background status activities
/// Describes activities that keep equipment status current automatically.
#[derive(LibertasExport, LibertasAvroDecode, LibertasAvroEncode)]
pub enum StatusProtocol {
    /// Refresh current status
    /// The service refreshes equipment status in the background without
    /// offering this activity as a user action.
    #[libertas_request]
    #[libertas_exclude_ui]
    InternalRefresh,

    /// Background refresh completed
    /// Reports when the background refresh finished.
    #[libertas_response]
    InternalRefreshComplete {
        /// Completion time
        /// The instant when the background refresh completed.
        completed_at: LibertasDateTime,
    },
}

/// Background status settings
/// Describes the service used to keep equipment status current automatically.
#[derive(LibertasExport, LibertasAvroDecode)]
pub struct Configuration {
    /// Background status service
    /// The App provides this service to refresh equipment status without
    /// presenting a separate user choice.
    #[libertas_endpoint_schema(StatusProtocol)]
    #[libertas_endpoint_server]
    #[libertas_exclude_ui]
    pub internal_endpoint: LibertasEndpoint,
}

Protocol roles

Every message-bearing protocol Union variant must have at least one role:

• Request: one-shot request input;
• Response: server-to-client correlated result;
• SubscriptionRequest: client-to-server stream establishment/renewal; or
• SubscriptionData: server-to-client stream data.

A message-bearing Protocol Variant may declare more than one role. Its declared roles identify its permitted uses; the actual operation and interaction context determine the applicable behavior. Additional roles do not themselves initiate operations or combine their effects. Each declaration must satisfy the constraints applicable to its roles. Operation-selection rules still apply when choosing which declared use to invoke.

A correlated Response operation requires a Response variant, and subscription delivery requires a SubscriptionData variant. EditRequest is a correlated server reply carrying a complete Request value: its variant must carry Request, and a Request-only variant suffices. EditRequest is an operation, not an additional schema role, and receiving it does not invoke the request.

Reference context and request construction. The current request is the value being composed or edited. Workflow and non-workflow requests may need related server data; a session ID is required only when the App needs one. A reference context is the lookup environment of a request under construction. It belongs to the received value that the request is built from: a displayed Response, a delivered EditRequest, or a subscription. Its contained schema-described values are reference objects.

Subscription reports, including reduced-type updates, update the SubscriptionData snapshot without replacing the retained Response. In a subscription, a successful correlated Response replaces the Response object even when an acknowledgement leaves the screen unchanged. Over a displayed Response, a non-transition acknowledgement replaces only the acknowledgement object, and the displayed Response remains the second object; a transitioning Response replaces both. In every context, a failure status or Error-marked Response leaves the reference context unchanged. The two objects of a context remain separate and are not merged into a synthetic value. The context of another displayed value, editor, or subscription, and historical responses, are never searched. With no eligible received data, the reference context has no objects.

CopyFrom names source paths on a receiving request node. It copies already-received data from the reference context without contacting the server. For each mapping, probe objects in context order and paths within each object in declared order under the shared copy rules. Copied nodes override initialization; unaffected nodes retain ordinary initialization, including defaults or undefined. Direct EditRequest adoption preserves all received values and supplies a new context containing that Request.

For example, a non-workflow update can copy item_id and revision without a session ID. In a subscription, a Response may supply the new revision while another CopyFrom mapping reads a value available only in SubscriptionData. An App must carry forward required continuation data; missing values are not recovered from older responses.

Hidden protocol context. Session identifiers, continuation cookies, record identifiers/revisions used only for application coordination, and application data carried only to initialize a later request must be schema-defined Hidden fields in the protocol payload. Apply Hidden to each such field or to its containing cookie/context field. A visible user-facing value may also be a copy source; do not hide that value merely because another request copies it.

• The server supplies required context in the Response, complete EditRequest, or SubscriptionData snapshot from which the next action is constructed. Declare CopyFrom on receiving request nodes that need those values. Keep session/coordination fields Hidden in the request too; a field initialized for the user to review or edit remains visible. Hidden on the source is presentation metadata, not a command to hide the destination of a value copy.
• Hidden data remains typed payload data: it participates in reference reads, copying, validation, subscription updates, and encoding. Hiding a field does not initialize it or exempt it from completeness checks. Follow the Hidden presentation rule.
• Supply required data on every permitted construction path, including initial entry, subsequent actions, workflow navigation, and resubscription. A complete EditRequest already supplies its hidden values; clients must not initialize over them. For copied requests, copied nodes override initialization and unaffected nodes follow the shared initialization rules. Never rely on a user to fill a hidden missing value or invent a placeholder session ID.
• Design continuation data against the reference-context replacement rules above. Carry it forward when its supplying object is replaced; an ordinary success acknowledgement can replace the retained Response of a subscription, or the previous acknowledgement over a displayed Response, while the screen stays unchanged. SubscriptionData or the displayed Response remains the second reference object, but an older Response or acknowledgement is not a fallback. Error does not replace either object. Reduced reports preserve or update hidden fields under the same projection rules as visible fields.
• First-time entry has no prior reference objects. Entry requests must be constructible from their own valid inputs and normal initialization; the server then supplies any continuation context needed for later actions. Handle absent external validation reads under the validation contract. Do not copy a value into the request solely to validate against it when a reference-context read suffices.
• Hidden controls presentation, not confidentiality or authorization. These bytes reach the client. The server must validate submitted identifiers, revisions, session ownership, and allowed operations; client-side invisibility is not evidence of trust. A session identifier is needed only when the App's interaction requires one.

For example, a Response may carry a hidden context containing session_id and initial_limit. A selected Request copies $.context.session_id into its hidden session_id and $.context.initial_limit into its visible, editable daily_limit. The user sees the limit, while the submitted payload carries both values. An EditRequest instead supplies both request fields directly. These are ordinary schema fields and shared CopyFrom paths, not a separate cookie transport or client-maintained session history.

ValidationRules, RangeMin, and RangeMax use the same reference context for external reads, retaining their own path syntax and first-non-null rules. Current-data reads inspect the request being edited. No matching value or an empty context yields null, which first-time composition must handle. Reading neither copies values nor fetches server data.

Calculation CopyFrom names its source in each alternative: root-relative alternatives read the current request and & alternatives read this reference context, tried in declaration order under the calculation contract. A link declared in a request editor probes the bound current editor first, then the reference objects in the interaction context's order. Within each source, it tries the declared paths in order, using the shared copy availability and valid-null rules. A valid editor match wins. Parent-relative paths retain the host field's editor ancestry, and a return applies to the bound current-request destination. These logical contexts need not use separate stored objects: a received EditRequest may be both the current request and its reference object. PrevRequest construction retains its current-editor source under the path context rules.

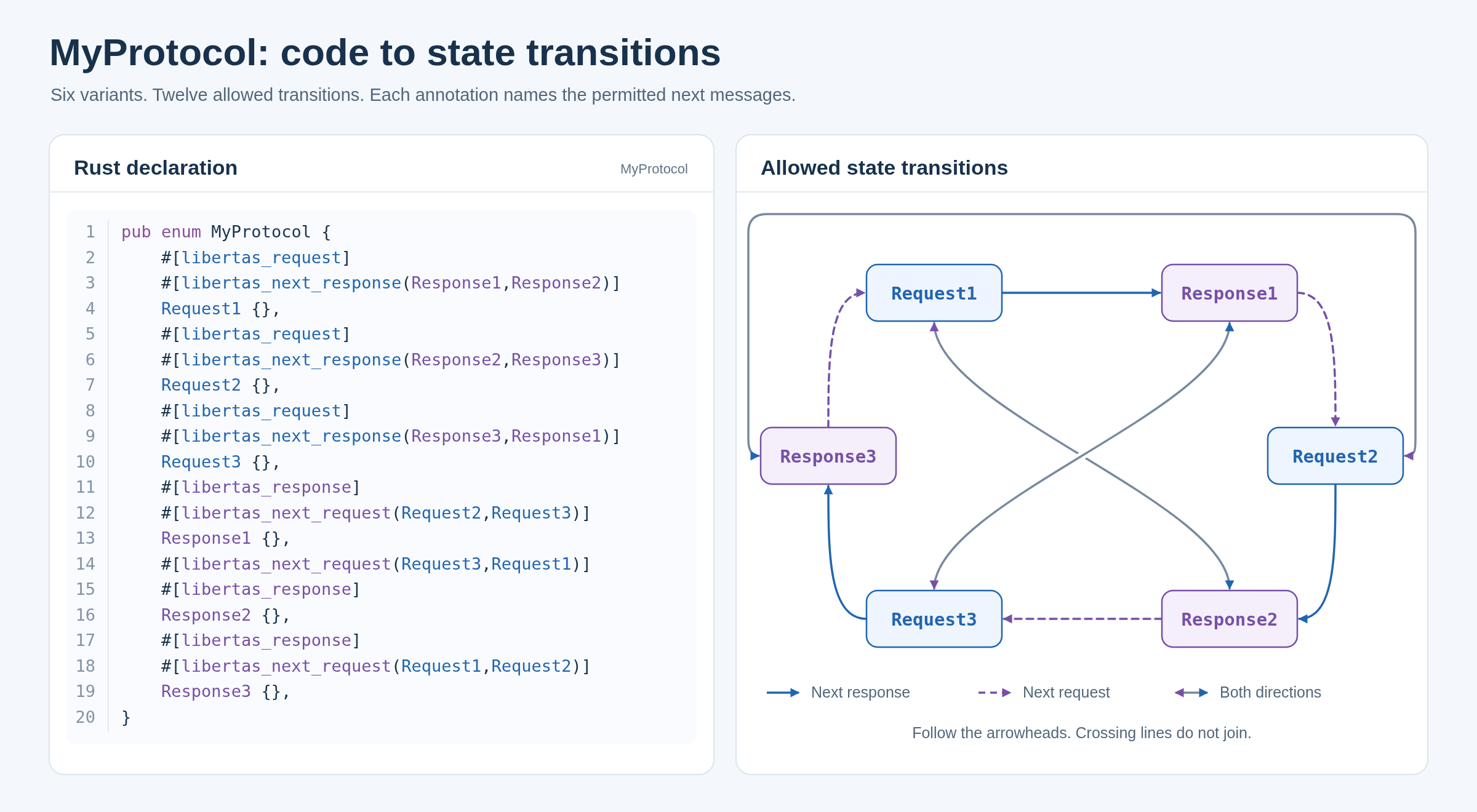

WorkflowRequest semi-role. WorkflowRequest specializes Response through a schema attribute. NextRequest identifies available next request actions; WorkflowRequest requires the client to construct and open its named request immediately when the variant is received as a correlated Response. Its variant must carry Response, and its attribute value must name exactly one Request variant in the same protocol Union. It cannot coexist with NextRequest or Error.

The client uses the received response under the reference context and request construction rule above. The response may contain arbitrary valid cookie data or be empty; it is not shown as an intermediate screen. The resulting editor may be incomplete and awaits explicit user submission, even for Nil, already complete, or entirely Fixed/ReadOnly payloads. Normal request visibility and access rules apply; an unavailable target must not be silently replaced with another request.

For example, a variant carrying both Response and SubscriptionData can use WorkflowRequest to open its named editor on correlated Response delivery. Subscription delivery of that same variant updates subscribed data without opening the editor, under the shared role rule above.

Role-less grouping Unions and single-field Union wrappers organize capabilities under endpoint protocol validation. Their reachable message-bearing variants carry the roles; the grouping nodes need not carry a role themselves.

An error result is still a Response. Mark it with the no-argument @LibertasError or #[libertas_error] in addition to its ordinary response role. The generated Error=true marker lets each client select its own standard error procedure. It does not define an error payload shape or change serialization, routing, transitions, or compatibility.

An Error-marked correlated Response is out-of-band of the current protocol state transition. Android and iOS consume the correlated response but do not install it as the current response, use it as transaction context, navigate to it, or visualize it as data or a chart. They preserve the current interaction and current response data so the user can always retry. The clients inspect the complete decoded response in deterministic depth-first response order, including hidden fields, and show its first non-empty renderable FormattedText in a persistent error dialog. When none is renderable, show a localized generalized error in the same dialog. Server status errors and failures decoding a correlated reply use this dialog too. Keep the full message readable, allowing scrolling when needed, until the user explicitly dismisses it. Dismissal does not submit, navigate, or discard editor values; the user can correct the request or retry. Therefore put the most useful user-facing explanation in the first FormattedText field; the payload may still contain any typed diagnostic or retry context required by App code.

An Error-marked Response may optionally declare one Nullable String field with the no-argument @LibertasErrorFieldPath or #[libertas_error_field_path] marker, which emits ErrorFieldPath=true. The field is optional: an error response does not need a locator. At most one field in a response variant may carry it, and the marker is invalid on any other host or outside an Error-marked Response.

Null means the refusal names no field. A non-null value is a square-form Libertas Schema Path rooted at the rejected Request value, the payload of the variant the client sent. For example, [incomes/2/box12/0/amount] selects one amount in nested Lists. List indices are positions in that sent request. An empty string is treated as null; Apps should send null instead. A refusal names one field, the first failing one.

The standard error dialog above is unchanged. After the person dismisses it, if the path resolves in the still-open originating editor, the client scrolls to that node and reveals it by opening collapsed or folded ancestors and summary items, using the ordinary revealed-row behavior. It marks the row with the error response's first renderable FormattedText, the same explanation shown in the dialog, until the person edits it. When no FormattedText is renderable, the mark uses the dialog's localized generalized error text. The mark belongs to the node the path names, not to the screen showing it, so it survives every change of view in the same editor: a summary or table row whose item contains the marked node shows an error indicator on that row; the item's complete editor or viewer, whether the reveal opened it or the person opens it later, shows the mark on the field itself; closing and reopening the item, resizing, or moving between panes keeps it. It clears only when the person edits the marked field or the editor submits again. A Hidden or ExcludeUI target marks its nearest visible ancestor row instead. An unresolvable path, or a closed editor, leaves only the dialog. The locator never navigates elsewhere, submits a request, or changes a value. An App must not return a locator that resolves into an OutputOnly node, a value it never receives; doing so is an App defect. Clients treat it as no locator and show only the dialog, and Studio also reports it in its developer diagnostics.

A page is a Request that both the server and the client may prepare, and some of its nodes only show the server's output. Mark such a node with the no-argument @LibertasOutputOnly or #[libertas_output_only] marker, which emits OutputOnly=true, on a field or named type used in a Request variant's payload, at any depth. Studio rejects it unless every use is inside a Request, the node is statically ReadOnly (on the field, its effective type, or an enclosing non-List node), and the node has an empty value: it is Nullable (any type), or a String, Bytes (including FormattedText) or List. Studio also rejects SizeMin greater than 0 on it, so the empty value is always valid.

Clients run no client validation on an OutputOnly node or anything inside it, incremental or final: neither its own constraints (size, Pattern, ranges, required or undefined) nor the ValidationRules hosted on it. Rules hosted elsewhere that read it evaluate normally, against its displayed value.

Submitting the Request that carries the node sends its empty value, not its Default: null when it is Nullable, otherwise "", empty bytes or []. That is the only change. Display, EditRequest, CopyTo and Default filling are unchanged. A Prev action, a link or a calculation request is a different request built by CopyFrom: a CopyFrom that reads an OutputOnly node copies its current displayed value under the ordinary copy rules, and only that request's own OutputOnly nodes, if any, are sent empty. The App's save path never reads an OutputOnly node, and it must not name one, or a node inside one, in an ErrorFieldPath: that is an App defect, handled there.

Outside a workflow, a normal Response is not required to declare NextRequest or WorkflowRequest. Omitting both is an intentional non-transition and is common for shared acknowledgement variants such as Success or Failure. It does not mean that every Request in the protocol becomes available. After correlating and consuming such a response, a client completes the in-flight attempt but keeps the existing protocol state, its displayed data, and its next-request choices. Reference context follows the current reference context rule; the acknowledgement is not installed as the displayed protocol value. A transient request/wait surface may complete, but no protocol-data destination is added or replaced. The reply to a master-detail refresh request is not such an acknowledgement: it re-installs the leading page it refreshes.

The absence of a next state identifies an ordinary completed result without a separate attribute marking a result variant. Present its user-facing result message transiently while retaining the existing interactive state; do not replace that state with a data screen offering no further actions. This state-preservation rule does not suppress the result message. It leaves the separate initial-entry, workflow-completion, chart-presentation, and live subscription behavior unchanged.

Apply these response rules under the shared role rule. An Error-marked correlated Response uses the separate standard error procedure above, regardless of NextRequest.

/**
 * Recording could not continue
 * Explains why the recorder could not save the latest measurement so the user
 * can correct the problem and retry.
 * @LibertasResponse
 * @LibertasError
 */
export interface Failed {
    kind: 1;

    /**
     * Problem explanation
     * Tells the user why the latest measurement could not be saved.
     * @LibertasReadOnly
     * @LibertasFormattedText
     */
    reason: Uint8Array;
}

/**
 * Measurement saved
 * Confirms when the recorder saved the latest measurement.
 * @LibertasResponse
 */
export interface Saved {
    kind: 0;

    /**
     * Saved at
     * Identifies when the recorder saved the latest measurement.
     */
    savedAt: LibertasDateTime;
}

/**
 * Recording activities
 * Describes saving measurements and reporting a problem that prevents the
 * latest measurement from being saved.
 */
export type RecordingActivity = Saved | Failed;

/// Recording activities
/// Describes saving measurements and reporting a problem that prevents the
/// latest measurement from being saved.
#[derive(LibertasExport, LibertasAvroDecode, LibertasAvroEncode)]
pub enum RecordingActivity {
    /// Measurement saved
    /// Confirms when the recorder saved the latest measurement.
    #[libertas_response]
    Saved {
        /// Saved at
        /// Identifies when the recorder saved the latest measurement.
        saved_at: LibertasDateTime,
    },

    /// Recording could not continue
    /// Explains why the recorder could not save the latest measurement so the
    /// user can correct the problem and retry.
    #[libertas_response]
    #[libertas_error]
    Failed {
        /// Problem explanation
        /// Tells the user why the latest measurement could not be saved.
        #[libertas_read_only]
        #[libertas_formatted_text]
        reason: Vec<u8>,
    },
}

The following declarations illustrate the shared role rule with a Nil ReadStatus and a Status payload.

/**
 * Check equipment status
 * The user asks whether the selected equipment is available now.
 * @LibertasRequest
 * @LibertasSubscriptionRequest
 * @LibertasAccessPrivilege("Read")
 */
export interface ReadStatus {
    kind: 0;
}

/**
 * Current equipment status
 * Reports whether the selected equipment was available when its condition was
 * checked.
 * @LibertasResponse
 * @LibertasSubscriptionData
 */
export interface Status {
    kind: 1;

    /**
     * Equipment is available
     * True means the equipment can currently be reached; false means the
     * equipment is currently unavailable.
     */
    online: boolean;
}

/**
 * Equipment status activities
 * Describes checking the selected equipment and reporting its current
 * availability.
 */
export type StatusProtocol = ReadStatus | Status;

/// Equipment status activities
/// Describes checking the selected equipment and reporting its current
/// availability.
#[derive(Clone, Debug, PartialEq, LibertasExport, LibertasAvroDecode, LibertasAvroEncode)]
pub enum StatusProtocol {
    /// Check equipment status
    /// The user asks whether the selected equipment is available now.
    #[libertas_request]
    #[libertas_subscription_request]
    #[libertas_access_privilege("Read")]
    ReadStatus,

    /// Current equipment status
    /// Reports whether the selected equipment was available when its condition
    /// was checked.
    #[libertas_response]
    #[libertas_subscription_data]
    Status {
        /// Equipment is available
        /// True means the equipment can currently be reached; false means the
        /// equipment is currently unavailable.
        online: bool,
    },
}

TypeScript Unions must have a stable numeric discriminator as the first property. Use a literal or enum member. Use @LibertasDiscriminator("field") only when automatic detection would be ambiguous.

Request access

AccessPrivilege is an alternative-access bitmap on Request and SubscriptionRequest variants:

Omission also means Read,Write. A user with administrator privileges grants a user endpoint read or write access, and the Hub keeps that grant in its access control list. Libertas cannot infer semantic mutation. The developer must mark a mutating operation Write; otherwise a read-only user is allowed to issue it. Clients may hide a disallowed action, but the Hub remains authoritative.

The Hub checks native client requests and AI tool invocations against the authenticated user's current endpoint read/write grants and the submitted Request's AccessPrivilege. Every applicable Request variant selected in a nested payload must independently accept at least one of those grants. Listing an action in an assistant's tool catalog confers no authority: each invocation is checked again, including after a permission change. A tool offered for a superseded task deployment cannot invoke its replacement deployment.

This is unrelated to task-process Permissions, which grant access to platform resources during task configuration.

AI tool calls

Whatever a person can do with an App through a client, an AI assistant can do the same way, when the App's developer and the person let it and it is capable of the task. The developer writes nothing to enable this, and can only withhold a request: LLMToolCall false or ExcludeUI, below. The person lets it through the access they grant and the confirmations they give. Every Request variant of an Endpoint protocol is automatically an AI tool: the Hub generates it for each user, from the same declaration and comments that clients use to draw the request editor, and only from the server Endpoints that user can reach. A tool call is one more way to send the request; the App receives the same Request value, in the same encoding, as from a client or another program, and cannot tell them apart.

The rest of this section describes what the Hub generates, for readers who need to know; App authors and CodeBots write none of it.

• Which requests. Every Request variant, unless ExcludeUI removes it or LLMToolCall is false for it. A SubscriptionRequest-only variant is not a tool.
• Name. The variant's native name, such as SaveFilingStatus. When the user already has a tool of that name, the Hub lengthens it with the protocol Union's and the function's names, up to 64 characters.
• Description. The variant's documentation, with the value-representation hints, then the documentation of each NextResponse variant as what the tool returns. A RequestConfirmation request starts it with "Requires user confirmation."
• Parameters. A Table payload's fields are the parameters, each with its own documentation. Any other payload is one parameter, value; a Nil payload has none. When the Endpoint is bound to configuration objects by BaseObjects, the Hub merges the user's instances into one tool and adds one required parameter per bound object, whose choices are the objects' names.
• Values. Each parameter takes the JSON form of its type, as the hints describe. A Union value is an object with exactly one member, named by the chosen variant's native name and holding its payload, such as {"MarriedJointly": {"spouse": "Alex"}}. A Union tag field (UnionTagField, the TypeScript discriminant) is Hidden: it is never a parameter, and the Hub sets it from the chosen variant. null is a value only of a Nullable field or Nil; a tool-call null for any other field cannot be encoded, and the Hub rejects the call.
• Authority and validation. Request access is checked on every call, and the service validates the request as it validates any other. Results are shown as described in AI tool-call output.

Request and response ordering

Scope: human-task interaction. The ordering, pending-operation, waiting, and leaving rules of this reference are the embodiment for a person interacting with a task: a generalized interaction with predefined rules that every generated client implements uniformly, so that one implementation serves every App without application-specific code. Software that interacts with a task, such as another App, a program, or a device integration, is not bound by them: it may agree with the service on its own rules, for example several requests in flight or its own time limits, within the endpoint's declared protocol, its roles, and its access checks.

A Control session is the client's session with the Hub. It carries task protocol messages and other Hub messages, and the Hub serializes all of its messages. Within one Control session, the request/response transactions of task protocols follow the exact order in which their requests were sent. Handle requests and emit and apply their correlated replies in that order; a later transaction must not overtake an earlier one. This includes calculation replies, Error responses, and EditRequest replies. Correlation and stale-operation checks still apply: an obsolete reply is discarded in its turn, never assigned to a later request. Timeout, cancellation, and transport failure use the existing operation-lifecycle rules; a late reply cannot revive a completed or abandoned operation.

The ordering scope is one Control session, not all clients globally. Unsolicited SubscriptionData/DataReport updates are not correlated reply slots; they retain their own subscription ownership and sequencing rules.

Field calculation requests

@LibertasCalculationRequest("CalculateOrder,CalculateShipping") and #[libertas_calculation_request("CalculateOrder,CalculateShipping")] declare which calculations use a field of a protocol Request/SubscriptionRequest as an input. One field may participate in several calculations and several fields may participate in one calculation. Names are comma-delimited, case-sensitive, non-empty, distinct protocol variant native names. The annotation is field-only. A calculation Request is a variant that at least one CalculationRequest names.

Calculation root. @LibertasCalculationRoot("CalculateLine") and #[libertas_calculation_root("CalculateLine")] go on the root node, the node a calculation is for, and name the calculation Request variants it roots. Both emit {"Name":"CalculationRoot","Value":"CalculateLine"} on that node. The value is a comma-delimited list of names under the same rules as CalculationRequest: non-empty, distinct, case-sensitive native names of calculation Requests in the protocol of each current request that contains the node. The attribute may go on any field, a record type, a List member type, a Union field or Union type, or the request's own payload type, which makes the whole request the root. On a field it marks that field's occurrence; on a type it marks every occurrence of that type. No root path is written anywhere.

• Mandatory. Studio rejects a calculation Request that no CalculationRoot names, and a CalculationRoot that names anything other than a calculation Request. Parsers only extract the attribute. A client runs no calculation that has no root, so a deployed App without roots is redeployed.
• Active calculations. A calculation is active in each current request that has a field participating in it, and Studio requires at least one occurrence of a root for it there. Each actual occurrence of a node carrying a root for a calculation is a root occurrence of that calculation.
• Union roots. A Union field and its selected branch payload are one editor node, so a root on either applies to that one occurrence; Studio rejects the same calculation's root on both. A root on a Union field or Union type stays the root across branch changes. A root on a branch's payload type exists only while that branch is selected.
• Calculation only. CalculationRoot governs only calculation invocation; a link to the same variant still binds from its host field or tapped node.

Each target is another ordinary Request with a Table payload in the same Endpoint protocol Union. Its NextResponse names its correlated Response variants. A calculation reply is plain or an Error: Studio rejects a calculation whose NextResponse names a variant that declares NextRequest or WorkflowRequest, or a variant that does not carry Response, such as a Request-only variant, which only an EditRequest delivers. An Error variant is admitted whatever it declares, because an Error assigns nothing and navigates nowhere. Every direct input field has CopyFrom relative to the calculation root under the calculation path forms: @, ^ and typed selectors read the current request from the root occurrence and are never looked up in a reference object; & paths read only the interaction reference context. Comma alternatives may mix both and are tried in declaration order; the first available value wins. Native discriminators are transport metadata, not calculation inputs. Neither is a Fixed field: it is filled by ordinary initialization, never by copying editor data, so it needs no CopyFrom and is never a dependency. A Fixed("current-user") User field is resolved from the authenticated session and verified by the Hub on the calculation request under the security constraint as on any other request; every other Fixed input takes its declared value. Only the constructed calculation request must be complete and valid to send; the parent editor may still contain undefined, unencodable fields.

Every copied input is a calculation dependency. Every participating field is a trigger; the root need not be one. A request finds the nearest root: a trigger belongs to the instance rooted at its nearest self-or-ancestor occurrence that declares a root for that calculation. Roots of one calculation may nest; the nearest one wins. A change to a trigger re-runs its nearest root's instance and every other instance of that calculation whose bound inputs read that trigger occurrence, so an outer instance that reads a field inside an inner root through a whole List stays current. A trigger with no root for its calculation at or above it re-runs every instance whose bound inputs read it; a trigger that is an ancestor of root occurrences, such as a List read as a whole, therefore reaches every root occurrence below it that reads it. A trigger never creates an instance. When one change schedules several instances of one type, they join that type's deferred entry in array order.

For example, the asset row type of an income record declares #[libertas_calculation_root("AssetSourceOptions")], and the calculation's inputs are @.class, @.source and ^<IncomeRecordItem>.owner. Editing a row's class re-runs that row's instance, its nearest root. owner has no root at or above it, so a change to it re-runs every asset-row instance of its own record, whose inputs read that occurrence, and no other record's.

Studio validates current-request participation in both directions, keyed by instance. A trigger with a root at or above it must be read by the inputs of its nearest root's instance. A trigger with no root at or above it must be read by some instance; Studio rejects a participating field that no instance reads. Every current-request source field used by CopyFrom participates in the calculation unless it is an invariant source.

Invariant inputs. A source that nothing can change while the editor is open may feed a calculation without declaring its CalculationRequest:

• a current-request value that is Hidden, Fixed, or ReadOnly on the value or an enclosing Table or Union, and that no calculation or link return CopyTo writes in that request. Its value then comes only from the editor's construction: EditRequest, construction CopyFrom, default initialization, or a Fixed declaration or session value. ReadOnly on a List protects its membership and order, not its member values, so an undeclared List source also needs its elements protected. A CopyTo destination, including a calculated allowed set and the fields it constrains, is not invariant even when hidden or read-only;
• a value in the interaction's reference context, whose reference objects the editor never changes. Only their replacement under that rule is an input change, as described under changes.

An invariant current-request input never triggers the calculation. Its value is read when a trigger schedules an instance and resolves from that instance's root occurrence, so a page-level hidden list is available to a per-row calculation rooted at the row. Declaring participation on an invariant field is unnecessary, and only makes it a trigger that never fires. Every other current-request source, including every user-editable field, must declare the calculation. Reference-object candidates follow the same interaction context: a Request variant is never a reference object, except the complete request that an EditRequest delivers, which is the reference object of its own editor, and a Response or SubscriptionData variant is a candidate only when its own NextRequest or WorkflowRequest actually offers the current request; Studio does not treat an unrelated variant that merely resolves the same path as a source. A containing Table or List may participate as a whole; changes below it are changes to that input. Paths support named fields and zero-based literal array indices, such as @.items[0].quantity. Whole-list copies remain available. Indices denote positions, never persistent row identities. Every required input has at least one alternative that resolves in each instance, and every declared alternative resolves somewhere: a root-relative alternative from the root, a &<Variant> alternative in that variant, which must be a reference-object candidate of the current request, and a bare & alternative in some candidate. Input projection follows the shared CopyFrom rules.

Typed ancestor paths and per-item calculations

Calculation mappings use Libertas Schema Path in the root-relative forms of its context table: @ for the root occurrence and its subtree, parent-relative ^ steps that start at the root, relaxed and strict typed selectors bound self-or-ancestor from the root, and & for the reference context. That section owns the syntax and ancestor-resolution rules; the following rules own calculation-instance binding and lifecycle.

A calculation root is a node that declares CalculationRoot naming the calculation; it belongs to no participating field. Each actual root occurrence in the current request has one calculation instance. There is no instance outside a root occurrence. Each transaction captures that immutable root occurrence and its ancestor bindings. Every current-request CopyFrom input and every CopyTo destination resolves relative to the root occurrence. The binding does not depend on which trigger fired. Different root occurrences, such as different List items, have separate instances. A shared ancestor input invalidates every instance that reads it. Do not coalesce different instances merely because they name the same variant. Current-request bindings are retained for the entire transaction, including after a later input change; a deferred execution is a new transaction. Reference-object inputs retain their distinct logical source under the interaction rule; this does not require a separate stored object.

Clients retain the bound root and ancestor identities while waiting. Resolve output paths against the original binding of the root, never the currently selected row. Removing or replacing the root occurrence, or one of its ancestors, invalidates its pending work before a reply can write. A positional mapping which would now address another item is also invalid; never retarget it. Surviving item-local bindings follow the array-removal rule, rather than treating an index shift alone as changed item data. Rediscover affected current instances and defer/reschedule still-needed work using the ordinary calculation rules. A root occurrence that appears while the editor is open acquires its own instance under the appearance rule. Reset only the destinations belonging to affected instances. This adds no wire opcode or persistent row identity requirement.

Union roots and inapplicable instances. With a Union root, inputs read branch fields through CopyFrom alternatives, such as "@.Business.limit,@.Farm.limit". Only the selected branch resolves, so the first available value is that branch's value; no reduced Union copy is needed, and Union identity rules are unchanged. A branch change is an input change to the same instance, so a pending reply whose retained destinations were in the deselected branch is obsolete. An instance with at least one output is inapplicable while none of its CopyTo alternatives has a destination in the root occurrence, such as while a branch outside those the calculation serves is selected. An inapplicable instance sends nothing, shows no marker and does not hold Submit. Its becoming applicable is an input change. A calculation whose reply has no output fields is always applicable. In every root occurrence where an instance is applicable, every output must have exactly one destination; Studio rejects an output that lacks one there. An output that exists only in some branches belongs to a separate calculation Request rooted where it applies.

Studio validates every current request in which the calculation has a participating field. It validates each @ path once against the type of each root node, and each ^ and typed path in every reachable root occurrence, including reusable record types and nested arrays. It resolves named types and each declared ancestor selector symbolically under the Libertas Schema Path rules, then validates suffixes, input coverage, type and nullability compatibility, money and number semantics, projection, Fixed protection, and direct/indirect cycles, counting the implicit writers of calculated allowed sets. Every CopyTo is @-relative and lies in the root's subtree, and exactly one of its alternatives matches symbolically for each selected-branch shape. A per-row input that reads its own List as a whole projects away the row's destinations, or it forms a cycle. Overlapping writers are permitted (the later applied assignment wins); a calculation instance writing its own array item and an enclosing whole-list write may both apply. Runtime checks still enforce actual values, bounds, and stale-instance ownership.

Array removal and calculation scope

For removal, "outside an item" means outside that item's data subtree, not later in array order. A calculation is item-local only when its root occurrence lies in that item and all fields actually copied as inputs lie in that same item; its CopyTo destinations always lie in the root's subtree. Include nested fields and the actual projected fields of reduced copies when determining this scope; the spelling of a path alone does not establish locality.

Removing an item has these effects:

• Cancel that item's pending and deferred calculations. A reply cannot recreate the item or write into the item which now occupies its former index.
• Preserve surviving item-local results and work when their bound nodes and copied inputs remain unchanged. Do not reset or recalculate them merely because their array indices decreased. A pending typed-ancestor calculation may retain its original surviving item binding; a literal positional mapping which no longer addresses the original nodes must instead be invalidated.
• Recalculate instances associated with the changed array which involve fields outside the individual item, such as a shared parent/root rate. This applies even if that external rate's value did not change. Reschedule through the ordered deferred queue's remove-then-append rule; outputs keep their values until a result is copied.
• Recalculate calculations consuming the array as a whole or a reduced array projection. Membership is an input change, including removal of the last item, even when no surviving element's individual field value changed.

For example, removing one line preserves another line's quantity × unit_price subtotal when both inputs and the subtotal belong solely to that surviving line. A line calculation which also copies the order's shared rate is recalculated, as is the order total calculated from the array of subtotals. Calculations belonging to unrelated arrays are not affected by this rule.

Reduced record and array copies

Calculation copies use the shared field projection. The destination type of calculation CopyFrom specifies the projection; no extra attribute is needed. A calculation input type selects the fields relevant to the calculation. Unrelated fields can be omitted even when complete or immutable, including large descriptive name strings that do not contribute to the result. Omitting these values reduces serialized payload size and avoids repeatedly transmitting them. A required field remains included regardless of its size or immutability. Primitive semantic types, currency, and union branch identities/discriminators must remain compatible. A union-valued field retains its complete union payload type; record projection does not reduce its branches, authorize conversion, or filter branches.

Construct the destination under the shared initialization rules. A destination field absent from the source type is unaffected by the copy and retains ordinary initialization. By contrast, a matching source field whose value is unfinished remains unfinished in the projection: do not replace it with a default. An unfinished required projected field blocks the calculation. Once the required inputs are complete and the constructed request is valid, unrelated excluded fields do not block sending, whether complete or unfinished. Valid null is preserved when permitted. Arrays retain every element in its original order, including incomplete elements; never filter or compact them. Changes to projected fields and array membership/order are inputs; excluded fields are not direct triggers.

CopyTo may apply a reduced record to an existing record, or a reduced array to an existing array, under that same field projection. An existing destination field with an unavailable value is not an extra field. Reduced arrays require the original length and order, use zero-based positional correspondence, and cannot insert, remove, or reorder elements. Nested projections follow the same rule. Validate all mapped fields, bounds, protected destinations, and retained bindings before applying any assignment. A membership change invalidates a pending whole-array result. This is a merge into existing data, not permission to create missing parents or replace a union with an incompatible branch. Full-type assignments retain their existing meaning.

Applying calculation results

@LibertasCopyTo("@.orderTotal") and #[libertas_copy_to("@.orderTotal")] on a successful calculation Response payload field assign that field to one field of the originating editor. Every direct successful response payload field has CopyTo; discriminators and Error responses are exempt. The source may be a whole Table or List. In this calculation context, every destination is @ followed by an optional field/index suffix, including zero-based array indices, inside the root occurrence's subtree; CopyTo never accepts $ or &, and @ alone does not replace the request root. A calculation that writes a page-level value is rooted at that level. Comma alternatives keep the shared exactly-one-match rule. Applying a calculation result does not navigate or replace any object in the editor's reference context. The reduced SubscriptionData design pattern uses variant-level CopyTo lists in a stable subscription context.

Studio checks mappings in each current request where the calculation is active, including reusable types, field types, nullability, numeric semantics and money currency. A calculation may perform any assignment that cannot trigger itself. Apart from the protected destinations named below, Studio rejects only direct and indirect calculation cycles: a calculation that reads, directly or through other calculations, a field it writes. Reading a Table, a List, or a reduced projection reads its membership and the descendants its projection includes, and only those. Writing a Table/List also writes its descendants, and writing a ConstrainedBy source counts as writing every field it constrains, because re-filtering can reset that field (calculated allowed sets). Overlapping destinations are otherwise permitted: distinct calculations, a link return and a calculation, or assignments within one response may write the same or nested destinations. Assignments within one response apply in declaration order; distinct transactions apply in the order their replies are applied under the ordering guarantee, so the later assignment wins. The platform guarantees that order and nothing more: the settled value of a destination that several calculations write follows the order of the edits that triggered them. Designing calculation requests whose overlapping results agree is the App developer's responsibility. ReadOnly prevents user edits, not calculation assignments. Fixed destinations and Fixed descendants cannot be overwritten (Union discriminators remain transport metadata), nor can a CacheIdentity field or data containing it, which stays immutable for the editor's lifetime. Applications own meaningful default values and whether an editable destination is appropriate for an automatically assigned result.

The client checks the complete mapping before applying it atomically. A null result assigns null to a nullable destination. An unavailable union branch, null parent, or out-of-bounds array destination rejects the complete update; CopyTo never creates missing parents or extends arrays. A rejected update is a calculation failure: it is reported, it is not sent again automatically, and Submit stays disabled until a retry settles under the failure rule. No unrelated field, default initialization, or navigation is changed by a successful assignment. A calculation changes the editor only through the CopyTo of a successful result. An Error response, timeout, transport failure, rejected update or obsolete reply copies nothing and leaves every output as it was. An assigned value is an ordinary editor change: the editor re-lays out exactly as for the same edit by the user, under the presentation rules, with no calculation-specific layout handling. A link return applies these rules to a plain reply to an ordinary link sent from an editor; it may write a calculation's destinations, and the later assignment wins.

Changes, resets, and deferred calculation

Editor initialization alone does not trigger calculations. EditRequest values are supplied by the service. Changes to participating inputs, including results assigned by another calculation or changed reference context inputs, trigger their calculations. A root occurrence that appears while the editor is open, an added List member or a selected Union branch whose payload carries the root, creates its instance and schedules it, also when every input has a Default; it is sent once its inputs are complete. Changes are measured as typed editor values, including becoming undefined; formatting alone is not a new input. Invalid intermediate input still invalidates pending work. Native inline editors may buffer text until Done. Buffered changes invalidate pending replies immediately and defer sending until the local edit finishes. Submit requires that edit to finish; an independently valid Prev request, when offered in the current presentation, remains available to discard it. While any calculation is pending or deferred, Submit is temporarily disabled; nothing is queued to send later. An output always shows its value, never placeholder text; only the :pending style state of the node that owns the operation marks the wait. The fields stay editable, and an edit starts a new calculation round that keeps Submit disabled. Submit becomes active again when the calculations settle, and then validates and sends its snapshot; a RequestConfirmation dialog comes after that validation, and its Send sends the validated snapshot. A calculation failure shows its error and keeps the editor open. An App Error response does not block Submit: the save path then rejects the request and marks the field through ErrorFieldPath. Links, an offered Prev action, and exit stay available during calculations: leaving the editor discards the round and its unfinished values. A link chosen while a calculation is pending constructs its request from the values as displayed, including a calculated value whose newer result has not arrived. The pane contract still suppresses Prev in an embedded trailing pane. When a required output is still undefined because its calculation has never run, an input being incomplete or invalid, reconstruct and validate the calculation request from its current inputs. Preserve the concrete failure's explanation and map its field or rule-owning group through the input projection to the exact original current-request occurrence, including List positions, field names and the selected Union branch. Present that owner under the validation result contract. For example, a List inside an income document that violates SizeMin shows the size error on that List, even when the calculation copies the whole income-documents collection.

Only when there is no concrete current-request owner to map, such as an unavailable copy, a reference-context input, an input without a matching source field, or a function-wide rule, report the blocked calculation on the trigger that last scheduled the instance, or on the root occurrence when its appearance scheduled it, and name the input it needs. Do not infer field blame from a rule expression. After an accepted edit, recheck the marked input in a freshly constructed calculation request and clear its marker when that input passes or its original occurrence is removed or replaced; do not wait for the output or transfer the marker to another List row or Union branch. A fallback marker for an undefined required output remains until that output is usable. An output that holds any value, whether its initial default, an EditRequest value or an earlier result, is never marked because of its calculation.

Changing an input does not reset any output. An output keeps its last value until the next successful CopyTo. A dependent calculation runs again only when a CopyTo actually changes one of its inputs; a failed upstream calculation therefore schedules nothing. Result assignments are atomic editor changes.

Clients permit continued editing. An editor has at most one calculation request in flight, whatever its calculation and whatever its instance: two calculation requests are never in flight together, even when they are of different types or belong to different List items. Every other scheduled calculation is deferred. A change that schedules the root occurrence of the request in flight makes that request obsolete: its reply is discarded in its turn and assigns nothing. Obsolete work is never queued again on its own account; the change that made it obsolete has scheduled that occurrence by the ordinary rule below, in the ordinary order. A change that schedules nothing for that occurrence leaves the request valid and its reply is applied. Array removal cancels or preserves item-local work under the scope rule. Deferred calculations form one ordered queue for the editor, with at most one entry per calculation type, a type being one calculation Request variant. The queue orders the types. An entry records the root occurrences of its type that await evaluation, such as the List items whose inputs changed; array items of one type share that type's entry. Whenever a change schedules a calculation, add its root occurrence to the entry of its type, creating the entry when absent, and move that entry to the tail. Do not retain its old queue position or append a duplicate. For example, with the types queued as [A, B, C], a change that schedules B produces [A, C, B]; one that schedules A next produces [C, B, A]. When one change schedules several types together, their entries move to the tail in the order in which the changed field's CalculationRequest lists them: a field declaring "A,B" leaves A ahead of B. When one atomic editor change alters several fields, such as the assignments of one reply, the fields are taken in assignment order and each field's types in its listed order.

The in-flight transaction keeps its immutable root occurrence and ancestor bindings. A new change queues a deferred execution; it cannot rewrite the transaction already sent, and it cannot be sent before that transaction's reply has arrived. Only after the in-flight transaction completes, with its result applied, its failure reported, or its obsolete reply discarded, is the queue head reevaluated and, when still valid, sent. Dispatch deferred work from the queue head in order, one at a time, never by schema declaration order or response completion speed, and never past a head that cannot be sent yet. Replies are therefore applied in the order of the queue, which is the order in which overlapping assignments take effect. Calculation transactions also obey the request/response ordering guarantee.

A deferred entry represents work to reevaluate, not a previously encoded request. At dispatch, take the awaiting occurrences of the head entry in array order. Reconstruct each from the current input contexts and check validity. If it is invalid or its root occurrence no longer exists, drop that occurrence without sending; a relevant later input change can schedule valid work again. Otherwise send it, one request at a time. The entry leaves the queue when its last occurrence has been sent or dropped; an entry whose every occurrence was dropped sends nothing. Result assignments which trigger calculations use the same remove-and-append rule after dependency propagation. Scheduling never changes the bindings of an in-flight transaction.

A failed calculation, whether a timeout, a transport failure, or a rejected update, changes no output and is not sent again automatically: the next edit or Submit runs it again. That Submit sends nothing; Submit stays disabled until the retry settles and is then pressed again. Obsolete errors do not report against a newer edit. Leaving or replacing the editor abandons its pending/deferred calculations; late replies cannot reopen it or update array positions that have changed ownership.

Submit and Prev send their own validated, immutable snapshots and own their navigation. Calculation replies cannot mutate a submitted snapshot. If the operation fails and the editor remains, reevaluate unfinished calculations. No partially filled parent request is transmitted. Applications remain responsible for backend business rules and meaningful defaults; Studio proves structural declarations, while clients validate actual runtime values.

Reusing a variant for reading and editing

A variant may carry both Request and Response. Add NextRequest naming that variant to offer editing after receiving it, and CopyFrom("$") on the request payload to initialize the complete editor from the current reference context. NextResponse may name the same variant for the server's updated result. Root copying copies nested values into an independent editing value; changing the editor does not mutate the received response.

This supports a receive, edit, submit, and receive cycle using the same data shape. It does not automatically turn response display into an inline editor. The existing protocol navigation rules control presentation under the shared role rule. The shared copy rules determine initialization when no reference context is available.

Workflow interactions

This is the unreleased workflow interaction contract. A protocol Union may mix state-machine interactions, whose stable screen is a response or subscription report, and workflows, whose stable screen is a request editor. The service selects every resulting transition. There is no separate machine-type marker.

Valid data and editor state

Every transmitted value must be structurally valid for its Avro schema. An editor can also contain an undefined field: it has neither a valid value nor an encoded null. A required undefined field prevents submission. Validation expressions may observe undefined as null, but this does not change the wire schema or make the field nullable. No partially filled request is transmitted for initialization or backend draft persistence. The CacheIdentity contract defines opt-in local recovery of committed field values on large workflow pages, independently of backend persistence. Uncommitted control text is discarded on exit. Without CacheIdentity, all unfinished page edits are discarded and the application resumes from its own saved, valid data.

Entering and continuing a workflow

A resolved editing Request can identify its leading-page row through an enum/protocol association, including direct entry; see master-detail panes.

The server has two ways to open the next editor:

• EditRequest: a server-to-client opcode carrying one complete, structurally valid Request variant from the Endpoint protocol Union. It is a correlated reply to the pending request that owns the next transition, for example Start, Submit, Prev, Resume, an action, or a link, and completes that operation under the shared role rule. The client uses the supplied value directly, without running CopyFrom or default initialization over it.
• WorkflowRequest: applies the Response semi-role. @LibertasWorkflowRequest("EditProfile") and #[libertas_workflow_request("EditProfile")] emit WorkflowRequest=EditProfile.

EditRequest also awaits explicit user submission, including Nil, already complete, or entirely Fixed/ReadOnly values; it must not automatically resubmit them. Its reference context follows the current reference context rule. EditRequest replaces the active editor even when the returned variant is the same variant as the previous step; variant identity is not step identity.

When a delivered editor, whether the target of a WorkflowRequest or the variant of an EditRequest, is beyond the user's AccessPrivilege, the client refuses the reply by the error procedure and keeps the originating surface, its reference context, and its draft. ExcludeUI and LinkOnly govern what a client offers, not what the service delivers: a delivered editor that carries either is installed.

On Request/SubscriptionRequest variants, NextResponse may list Response, SubscriptionData, or Request variants. On SubscriptionData it instead declares directional compatible updates. Permitted delivery follows the shared role rule. When NextResponse is declared, a successful transition reply must be one of its named variants. Error responses and standardized failure statuses use the shared error/retry path and do not need to appear in this navigation list. These declarations constrain the possible replies; the client never selects the service's reply for it. A reply that the client refuses before it takes effect is handled as a failure: the client reports the refusal by the error procedure, and the originating surface, its reference context, its actions, and its draft stay. The client refuses a correlated reply that cannot be decoded, whose variant the request's NextResponse does not admit, or whose variant carries only SubscriptionData; an EditRequest value that is not a valid value of its Request variant; a delivered editor beyond the user's access, as above; a link return that cannot be applied; and a reply whose allowed-action list is malformed.

Submit, previous actions, and completion

The workflow's Next/Submit button validates and sends the current request. It is not a chooser for the state machine's NextRequest actions. These are control roles: a page's Display Template may supply localized button captions without changing their behavior, eligibility, or request names inside a chooser.

@LibertasPrevRequest("ReopenProfile,ReopenAddress") and #[libertas_prev_request("ReopenProfile,ReopenAddress")] belong on a Request variant and emit PrevRequest containing one or more distinct Request variant native names in the same protocol Union. Their declared order is presentation order. With one eligible target, Back selects it directly; with several, Back opens a chooser using their ordinary localized names. This is the workflow's in-app Go Back action, distinct from screen-navigation and system Back. With none, there is no workflow Back action.

While the editor is embedded in a master-detail trailing pane, clients suppress all workflow Back controls, including the chooser and shortcuts, under the pane contract. The pane offers Close and Next; the leading pane owns navigation for the two-panel arrangement, and the App must make that navigation complete. A transient request composer likewise never offers a workflow Back control: it was opened above a displayed page by the person's own choice, and its Cancel already closes it while idle. The declaration remains available for ordinary full-page workflow presentation. Suppression depends on the editor's actual placement, never on inferred equivalence between requests.

A request whose purpose is to choose where to go, such as a section chooser offered as a "Go to" action, belongs in a composer above the page it leaves. There is no reason to deliver it as a workflow editor through WorkflowRequest or EditRequest: such a page would exist only to be left, and the service already opens the chosen destination as the reply to the composed request.

PrevRequest names this action declaration, not a stored previous request or reference context. Its declared target list is not dynamically filtered by ConstrainedBy.

Each selected Back action constructs an ordinary request using the shared CopyFrom rules. Its reference object is the current editor's selected payload, independently of the unfinished editor's validity. A hidden application-defined cookie can identify any of several concurrent workflows. Cookie design and historical selection belong to the application. Accepting a historical edit must follow the saved-page consistency rule. Studio validates declarations and statically decidable mapping rules; it does not prove that cookie fields are initialized on every path. The client refuses to encode or send an incomplete or invalid previous action. Only the newly constructed action request is encoded; the current draft is not.

Back expresses abandonment of the current edit. The backend decides what to return, including a complete historical request through EditRequest. The client does not navigate through cached historical requests. Construct and validate the action before sending it; a rejected selection or failed attempt follows the ordinary error/retry procedure. There is no server-side undo implied by discarding the current edit.

For a workflow Submit or Prev operation, a non-error response without WorkflowRequest ends the editor and is presented as the resulting stable response. NextRequest, if present, offers its declared state-machine actions. With no NextRequest, the response is a valid terminal screen, for example a FormattedText congratulations message. The state-machine acknowledgement rule for ordinary requests outside a workflow remains unchanged.

Only the explicit workflow Prev and Next/Submit buttons have workflow semantics. Native Back, dismissal, or leaving the interaction sends no previous action. Local draft retention follows CacheIdentity; Control endpoint navigation follows the landing rule. Closing a field picker or nested editor returns to the same parent editor. Cancelling an action chooser changes neither data nor workflow state.

Saved-page consistency after historical edits

Later pages can depend on earlier accepted answers, so a workflow service keeps its stored pages consistent with one another when an earlier page changes.

Compare the submitted page answers with the saved answers before changing any stored page. Ignore transport cookies, navigation metadata, and presentation-only values in this comparison. An unchanged Next is review/navigation: preserve all saved pages and completion state. Opening, canceling, or rejecting an edit also preserves saved history.

When the backend accepts a changed page, it must, for each stored page that the changed answers affect, do one of the following: recompute and revalidate that page's data against the revised answers and save the consistent result; erase that page's data; or keep the page's answers and mark the page unanswered, so that it is asked again, with those answers, before the workflow can complete. This is a mandatory application rule, not an optional client navigation policy. Do not erase before validation or leave a partially updated state visible. No page remains answered for resume, calculation, or completion merely because it was valid before the change; derived results, cookies, allowed-choice sets, and saved progress must agree with the revised answers as well.

Complete this reconciliation before continuing or resuming the workflow. Resume and EditRequest use only the consistent stored state; retries, concurrent editors, and late submissions must not restore data from before the change. The backend owns persistence and consistency; the client and Studio cannot infer application dependencies or repair saved pages.

Opening a historical editor does not itself change anything. An abandoned or rejected draft changes no saved history; the rule applies when the backend accepts and saves the change. For example, changing a saved filing status from joint to single erases the spouse data that no page of a single filer owns, and asks again each affected page whose stored answers no longer validate, before the interview can complete.

Validation context and progress

Editable requests use the shared path contract. Supported references use the current reference context, including on inherited types and hidden fields. CopyFrom remains separate initialization metadata with its defined invocation source. EditRequest context follows that same owner; it does not retain an older response in its place.

Progress is an ordinary FormattedText field following the static read-only placement and request-value contract. For example, the service can supply it in EditRequest or response data copied into a WorkflowRequest editor. There is no progress opcode, percentage schema, fixed step count, or client inference from previous-action lists or history.

Operation ownership

EditRequest uses the same correlation, status envelope, transport failures, and error/retry procedures as an ordinary reply. Allow only one pending Submit, Prev, or link transition per editor; while one is pending, the others are blocked. Until its reply arrives, the editor accepts no edit, link, document import, or second transition, so a link return never arrives after the user edited its destination. A displayed value likewise has at most one pending operation: a second action or link is blocked until the reply. Each stacked page retains its own operation and subscription owners; releasing it drops later replies and updates without affecting another page. A duplicate or late reply cannot replace an editor after its operation was consumed, its editor superseded, or the interaction exited. Subscription updates and auxiliary calculation responses keep their own owners and cannot perform workflow navigation or overwrite a replacement editor. Leaving the UI cannot retract a submission already received by the backend. Persistence, retry idempotency, and resume selection belong to the application; the client never serializes an incomplete draft to supply them.

Waiting presentation.

Mobile Control uses one shared blocking progress presentation per client, with screen and panel scopes. Waiting follows the operation that owns the surface, never a count of in-flight messages.

• **Screen progress** covers connection and required device/schema loading, endpoint landing preparation, and an ordinary committed protocol Request awaiting its correlated reply. Required Matter schema is settled before rendering a returned Matter device.
• Panel progress is reserved for a link Request awaiting its correlated reply, within the panel that owns that linked interaction. Opening a linked Request for editing is interactive composition, not waiting, and shows no waiting spinner. Its origin retains transition ownership to prevent a duplicate action, independently of progress presentation.
• After commitment, the entire covered screen or panel is disabled: fields, links, Commit/Next, and draft Cancel/Close. Cancel discards an unsubmitted draft; it must not be offered as cancellation of an already submitted Request. Endpoint exit retains the leaving rule.
• Only the owning reply or a terminal operation/connection failure settles the wait. Duplicate, stale, subscription and calculation traffic cannot clear it or navigate a replacement surface.
• Auxiliary calculations are normal operation. Pending or deferred calculations alone show neither screen nor panel progress. They retain field-level pending presentation and submission gating.

Leaving while an operation is pending. For human-task interaction, protocol interaction is strictly ordered and proceeds request by request: every Request has its correlated reply, and only SubscriptionData arrives outside that order. A pending Request is therefore never abandoned on its own. A surface whose operation awaits its reply cannot be dismissed by itself: not a transient composer, and not an editor with a sent Submit, Prev, or link. For a person, every sent Request waits for its reply: a client offers no control that gives up one pending Request and stays in the endpoint. On a waiting surface, native Back or explicit endpoint exit leaves the endpoint; it never returns to the surface beneath, to a landing, or to another pane. Draft Cancel and panel Close are disabled under the waiting presentation rule.

Leaving an endpoint is part of normal interaction. A person may leave at any time, whether or not a reply is outstanding, and a task with several endpoints follows the same rule as a task with one. The Control session continues unless its transport breaks or times out. Every connection is a new connection: when the session is lost, the data of every endpoint in it is cleared, including surfaces, reference contexts, snapshots, and pending operations and calculations, and after reconnecting an endpoint starts again from its entry request when the person opens it again. In mobile Control, connection loss returns to the task's endpoint list when that root remains a list. If the task root automatically enters a landing, including a task with one endpoint, the client exits the task to its parent Control screen. Reconnection does not reopen that task or endpoint; a retained endpoint list may reload its inline default subscriptions. Every attempt to open a task or an endpoint from its task root first checks that task's Hub connection. If it is unavailable, the client reports an error and stays on the current screen. An endpoint protocol Error preserves the current screen and displays the error. Leaving abandons the endpoint's surfaces with their pending operations and calculations and queues the release of its explicit subscriptions; a reply that arrives afterwards is discarded, and nothing the backend already received is retracted. Entering the endpoint again repeats its entry request, and CacheIdentity governs any draft recovery. Keeping the exchange consistent for a person across leaving and entering again is the App developer's responsibility: the service admits the entry request in every state in which the endpoint can be left.

Waiting is the initiator's decision. The protocol defines no timeout. The initiator of a Request decides how long to wait for its reply: a program or an AI participant applies its own limit, and a person dismisses when they choose to. Giving up is leaving the endpoint as above; it never produces a reply of its own and never moves the exchange to another state. A client that initiates auxiliary requests itself, such as field calculations or a document transformation, is their initiator and may bound them; an expired auxiliary request is a failed one and changes no data.

Chaining, caching, and copied values

Use variant native names, not type aliases or localized labels:

NextRequest is optional on a Response. When present, its value must be non-empty and names the choices installed with that response. With neither NextRequest nor WorkflowRequest outside a workflow, the response is the non-transition acknowledgement defined under Protocol roles; absence is never expanded to every Request in the protocol Union.

The following non-copyable schematic uses a compact Rust enum to illustrate the transition annotations. Each Request names two possible Responses, and each Response names two allowed next Requests.

Each state appears once. Double-headed links allow both directions; crossing lines do not join. Open the full-size SVG or download the PNG.

The shared copy rules define path selection, initialization, and field projection. The context table identifies the reference context for each operation, including workflow Back and calculation construction. Copying from the current editor does not replace the interaction's reference context.

Protocol conformance

Protocols describe capabilities

A protocol is a declaration of capabilities: the operations and message payloads that a participant can send, receive, or support. Client/server matching establishes which of those capabilities correspond and whether mandatory requirements are satisfied. Serialization then carries a value for the matched capability. Protocol translation should be understood in that order, not as arbitrary substitution of bytes or conversion of unrelated data structures.

A protocol path prefix identifies a payload capability through its enclosing protocol Union variants. It is not a path to every field inside that payload. Once the capability is selected, ordinary serialization/deserialization handles the payload under its compatible schema. Capability correspondence and encoding are separate concerns; finding a matching prefix does not make incompatible payload definitions compatible.

Capability prefixes across nesting depths

A capability may sit at a different Union depth in each peer. Its prefix is the chain of protocol variants from the protocol root to the variant that carries a role; that variant is the capability, and a Union inside its payload is ordinary payload data, not a further capability. A variant without a role extends the prefix when it is itself a Union or holds exactly one field whose type is a Union; a chain of such variants that returns to itself without a role is invalid. Matching follows a partial prefix while a supported complete path remains possible, and an unsupported path is rejected.

Correspondence must be unique. A capability's identity is the materialized Union that owns it together with the role-bearing variant of that Union, so aliases and enclosing wrappers do not change it. Each endpoint protocol exposes at most one occurrence of an identity: duplicate occurrences, such as Primary / OnOff and Backup / OnOff exposing the same OnOff identity, reject the match before connection, even when their enclosing paths differ. The matcher never chooses the first occurrence. Distinct identities that share a short name are not duplicates, and conformance is evaluated in the corresponding capability context, not by requiring identical outer grouping.

Every prefix element without a role is a Union, or a record whose only field is a Union, so its Avro encoding is that Union's discriminator alone. A message is therefore its prefix's discriminators followed by the capability's payload. The client task host builds a translation plan in both directions, using the server schema as the wire representation. It translates a message by reading the sender's discriminators up to the capability, writing the receiver's discriminators for the corresponding capability, and copying the payload bytes unchanged. For example, client Manual / OnOff / SetState corresponds to server OnOff / SetState: the client's three discriminators become the server's two, and the Boolean payload passes through.

Integers in a payload that name protocol choices, a response's allowed-action list and named action-control lists, always name discriminants of the server schema, the wire representation. The translator copies them unchanged with the payload, and a client App reads them against the server's schema, never its own arrangement.

Required and optional capabilities

Protocol declaration and optional runtime support solve different problems. The protocol Union itself has one versionless, lifetime-invariant name. New App versions append new protocol payload variants to that same Union; they do not replace it with a V2 Union. The complete evolution contract is in the App data-type design guidelines.

ProtocolConformance may be declared on a protocol Union on either client or server. During task configuration, the client expression is evaluated against the server declaration and the server expression is evaluated against the client declaration; both must pass. Operators are:

• & AND;
• | OR;
• ! NOT; and
• ^ XOR.

Without an expression, every direct variant in that Union context is mandatory.

Matching variants must also have pass-through-compatible payloads. Libertas translates only the capability prefix; inside a payload, positional fields and overlapping nested Union slots must remain aligned, and nested optional variants may only extend the tail of a smaller Union. Payload bytes are not decoded by the translator; the receiving server or client App decoder validates them against its own schema.

The following focused snippets are non-copyable schematics: the referenced variants and their required natural-language documentation are omitted so the placement of ProtocolConformance remains visible. A generated App must use the complete declaration style shown in the preceding role example.

/**
 * Equipment status activities
 * Describes checking current equipment, changing its target, and reporting its
 * current condition.
 * @LibertasProtocolConformance("ReadStatus & Status")
 */
export type StatusProtocol = ReadStatus | SetTarget | Status;

/// Equipment status activities
/// Describes checking current equipment, changing its target, and reporting its
/// current condition.
#[derive(LibertasExport, LibertasAvroDecode, LibertasAvroEncode)]
#[libertas_protocol_conformance("ReadStatus & Status")]
pub enum StatusProtocol {
    // Fully documented variants are omitted from this non-copyable schematic.
}

If a direct variant's payload is itself a Union, the conformance attribute may be placed on that variant. That nested expression becomes the variant's evaluation. Libertas cannot infer that an arbitrary Union is protocol-related, so append-only protocol policy is a publishing/tooling contract rather than a universal Union validator.

Configuration matching proves only mandatory compatibility. The server does not know the client's complete declaration. A client that wants to use an optional server payload must check the configured server's runtime variant index before sending the request. In Rust use VariantIndex and variant_index!; a nested optional payload may require a chain of variant-index checks.

No attribute enables protocol Request/Response or subscription-payload caching. CacheIdentity concerns local editor drafts only.

Compatible SubscriptionData

A SubscriptionData variant A may declare NextResponse(B,C) naming other SubscriptionData variants in the same protocol. A and these named variants form A's Compatible SubscriptionData group. Compatibility is directional: B and C may update an existing A working value; this declaration does not authorize A updates to B, B updates to C, or transitive membership.

Every member must have a non-null Table (struct) payload. On an incoming compatible SubscriptionData report, retain A as the working type and screen, including its presentation attributes and NextRequest actions. A report with explicit CopyTo uses the reduced subscription design pattern. For the name-matched form without CopyTo, match fields by exact native name at the struct root. Replace each matching field's complete value; do not recursively patch nested records or merge array elements. Preserve fields present only in A and ignore fields present only in the incoming report. Valid null is a value and clears a matching nullable field; undefined is never transmitted. Hidden fields participate in this merge like visible fields.

Studio validates the declaration, Table payloads, and assignability of matching fields, including numeric/semantic types, nullability, and nested shapes. Clients prepare and validate the complete merged value before publishing it atomically; an invalid update leaves the working value unchanged. The App must ensure that its updates preserve the complete working value's constraints and meaning.

Every incoming SubscriptionData report is offered to every live screen for its source Hub, including covered screens. Each independently decides whether it needs the report. Acceptance or rejection by one screen never stops traversal. Compatibility changes data application, never ownership: Hub, task, endpoint, schema context, subscription lifetime, and stale-message checks still apply. A current A may accept its explicitly named compatible reports even when the original SubscriptionRequest names only A. Before any working value exists, initial data must satisfy the SubscriptionRequest's NextResponse. If it names A, B arriving before A is discarded, never deferred or replayed after A arrives. Process reports in arrival order; schema-loading buffers cannot reorder them. Ordinary non-compatible reports retain existing acceptance and replacement semantics. For actions originating from that subscription screen, the merged A supplies the SubscriptionData object in the reference context, which also retains the latest successful correlated Response received in that subscription. A report does not replace the Response object or the context of another subscription or displayed value. A compatible update does not navigate, submit a request, or execute the incoming variant's actions. Its delivery scope follows the shared role rule.

Sending compatible reports is entirely the App's choice and responsibility. Declaring compatibility never instructs the Hub or clients to generate, request, or synthesize such reports. Apps may continue sending complete snapshots only. Every SubscriptionRequest, including a repeated default subscription, must return the current complete initial snapshot. The App owns snapshot/update ordering and must not rely on a new subscriber having seen earlier reports.

SubscriptionData array append

Relationship to compatible SubscriptionData

This extends the compatible SubscriptionData contract. Existing directional acceptance, all-live-screen delivery, ownership, ordering, initial snapshot, and atomic publication rules continue to apply. AppendTo does not grant permission to deliver a report to a screen. A compatible append report arriving before its required initial snapshot is discarded, never replayed later.

Attribute declarations

• AppendTo("Entries.entries") is declared on an incoming SubscriptionData's root array field. Its value is exactly one Variant.field destination, using native names in the same protocol. The named variant is a working SubscriptionData that admits this report through NextResponse. Its named field must be a root array. Nested paths and per-item targets are out of scope.
• Optional AppendIndex("$.start_index") is declared on that same array field and requires AppendTo. Its root-field Libertas Schema Path references one field in the incoming report. That field must be a non-nullable integer Number, carrying the expected destination length before the append. Its value must be non-negative. The index field should be Hidden; visibility has no effect on validation.
• Both source and destination arrays must be non-nullable. Elements may be nullable where assignment to the destination element type permits it. Element types must satisfy the existing compatible-field assignability rules.

Use @LibertasAppendTo("Entries.entries") and optional @LibertasAppendIndex("$.start_index") on the incoming array in TypeScript. Rust uses #[libertas_append_to("Entries.entries")] and optional #[libertas_append_index("$.start_index")] on that field. The index is an ordinary integer, not a date, duration, money amount, enumeration index, or bitmask.

Schematic schema notation:

Entries: Response, SubscriptionData, NextResponse("MoreEntries")
    entries: Array<Entry>
    cursor: String

MoreEntries: SubscriptionData
    added_entries: Array<Entry>
        AppendTo("Entries.entries")
        AppendIndex("$.start_index")
    start_index: Integer, Hidden
    cursor: String

Applying a report

1. Qualify the report for the current working SubscriptionData using its existing directional compatibility and ownership checks.
2. For each append targeting that working variant, compare the optional index against the destination array's exact current length, before applying any changes from the report. A zero-based append position of zero therefore requires an empty destination. Perform this check even for an empty append.
3. Append the incoming elements in their supplied order. An empty array changes no elements; duplicates are retained. Without AppendIndex, append without the position check.
4. Exclude AppendIndex control fields from copied data. Without variant-level CopyTo, apply ordinary compatible root-field replacement to other unannotated fields; with CopyTo, apply its typed reduced projection. A field carrying AppendTo never also participates in name-based replacement, even if its name matches a destination field. If its AppendTo names another working variant, ignore that field for this screen; do not fall back to ordinary replacement.
5. Validate the complete resulting working value, then publish the report's changes atomically. Retain the working type, screen, and actions.

A negative or mismatched index rejects the entire report, preserves the original working value, and reports a protocol error. Never pad, truncate, overwrite, adjust an index, partially apply other fields, or infer automatic recovery. Other assignment or resulting-value validation failures also reject the entire report. A full snapshot continues to replace its arrays normally.

Studio validation and App responsibilities

Studio validates attribute placement, destination and index references, array and element types, and index integer type. For each possible working variant, reject conflicting writers: two appends to the same root array, or an append and an ordinary replacement or CopyTo write to that array within one report. Actual index values and current array lengths are runtime checks.

The App owns ordering, duplicate-report prevention, retention, and complete initial snapshots for new subscriptions. If one append report serves multiple working screens, the App must ensure each intended recipient has the required array prefix. Under the ordered-delivery contract, an index mismatch exposes a breach of that expected append sequence. Matching lengths do not prove equal contents; AppendIndex is a position-consistency check, not a content checksum.

Combined copy and append

A report may combine variant-level CopyTo with AppendTo. Each admitted recipient must still resolve exactly one CopyTo destination; multiple matches are an App design flaw even when append destinations are unambiguous. Exclude AppendTo fields and their AppendIndex control fields from that projection. Its remaining fields follow the typed reduced-copy rules. Resolve all destinations and check indices before applying the report to one candidate working value. Any copy, append, index, or resulting-value failure rejects the whole recipient update.

Compute conflicting writes from the actual projection, including descendants replaced by complete values. Selecting a Table does not itself write omitted fields retained there. Two appends, or an append and a copied write, must not modify the same array or its contents. Appended elements must be complete values, not reduced projections of existing elements.

Live chart use

Append reports can supply live chart data. A chart starts with its complete subscription snapshot; accepted atomic appends extend the chart-bearing working array and refresh its presentation. Optional AppendIndex checks the expected sample count. Rejection leaves data unchanged. Ordering, retention, and fresh-subscriber snapshots remain App responsibilities. Sending only new elements and update metadata reduces update-message size compared with retransmitting the complete accumulated array; initial snapshots remain complete. This is a use of the shared SubscriptionData mechanism, not a separate chart patch format or an automatic scrolling requirement.

Reduced SubscriptionData design pattern

Reduced SubscriptionData is an optional design pattern an App can adopt using Libertas subscriptions, NextResponse, CopyTo, and typed copying. It introduces no new protocol message role or schema attribute. An App may instead publish complete snapshots for every update.

An App adopting this pattern maintains a complete stable SubscriptionData value. Each stable Protocol Variant declares NextResponse naming the reduced Protocol Variants it accepts. Each reduced Protocol Variant declares CopyTo with one or more comma-delimited Libertas Schema Paths identifying the stable values or subtrees it updates.

The pattern also reuses source-code field identifiers as a shared semantic vocabulary. An App can give a Native Name one consistent documented meaning across full state, partial requests, and reduced reports. Compatible types and explicit paths establish valid field correspondence and select the intended occurrences; the same identifier can appear in several structures. The App authors these semantic relationships. See static and runtime validation for the shared checks on declarations and the separate validation of values.

Acceptance and destination are separate

The SubscriptionRequest's NextResponse selects its complete initial snapshot. The stable SubscriptionData's NextResponse admits later reduced reports. The reduced SubscriptionData's CopyTo specifies where its payload is copied. CopyTo does not grant delivery permission or infer an acceptance relationship. A reduced report must satisfy both the existing subscription/ownership checks and the stable variant's explicit acceptance declaration.

CopyTo is one positional string containing a non-empty path list. For example:

ZoneState: Response, SubscriptionData, NextResponse(NoWaterPeriodsChanged)
ZoneSettings: Response, SubscriptionData, NextResponse(NoWaterPeriodsChanged)
NoWaterPeriodsChanged: SubscriptionData
    CopyTo("^<ZoneState>,^<ZoneSettings>")

The example is schematic. The named Protocol Variants belong to the same protocol; their complete Table definitions and user documentation are required in an App. A path may instead descend explicitly from the stable variant, such as ^<ZoneState.schedule>, when the reduced payload targets that subtree. Use strict variant-rooted paths to identify the entire destination occurrence; intermediate schema nodes must not be skipped.

Per-destination resolution and typed copying

Resolve CopyTo against each eligible stable working value under the shared mapping and destination-uniqueness rules. One publication may reach both a ZoneState screen and a ZoneSettings screen; each independently resolves one destination while retaining its type and actions. Each recipient retains its own Endpoint, schema, subscription identity/parameters, and lifetime. There is no global atomic transaction across different recipients.

Schema compilation checks each declared report/destination pair: the stable variant admits the report, every path names an unambiguous reachable destination, and source-to-destination type copying is valid. No match does not authorize name-based fallback.

A field carrying a complete array with the destination's element type replaces that whole array, including removals and an empty array. This differs from a reduced-element array projection, which retains the correspondence required by its copy contract. CopyTo does not imply AppendTo, insertion, or arbitrary recursive JSON patch semantics.

Prepare and validate the complete resulting working value before publishing any assignments. An invalid applicable path, stale binding, incompatible value, or violation of schema-expressible value constraints rejects that working value's update atomically. Unrelated fields, the stable Protocol Variant, presentation, and actions remain unchanged. The reduced Protocol Variant carries CopyTo for its whole payload; the selected destination type determines the checked field projection.

Snapshot, mutation, and publication consistency

Every SubscriptionRequest, including repeated subscription and resubscription, receives a fresh complete current stable snapshot. A reduced report arriving before its required baseline is discarded, not saved for later replay. Snapshot capture and the transition to subsequent reports must not lose a committed change or reorder publication. Renew the baseline through a subscription request when the object, filter, or subscription context changes.

A partial-update Request changes authoritative App state after validation and recomputes affected derived values. Its correlated Response acknowledges that request; subscription publication is a separate operation. Use an ordinary non-transition success acknowledgement when the working screen should remain, and Error for a rejected request. A rejection must not publish the proposed values as accepted state.

The App is responsible for designing its protocol and transactions to preserve data consistency across every permitted interaction and state-transition path. This includes partial/full requests, concurrent clients, devices, timers, background work, restored state, subscriptions, and restart recovery. The App coordinates authoritative state changes, affected derived or hidden values, and publication order; fields that must change together belong in one atomic report, or the protocol must explicitly coordinate their transition. NextResponse and CopyTo describe acceptance and typed placement. Schema and runtime checks enforce their declared structural constraints, but do not prove application-level consistency across all paths or supply missing transaction logic. For the same committed state and subscription context, the ordered reports must produce the complete working value that a fresh snapshot would describe. App verification must cover the snapshot boundary, concurrent changes, rejected requests, other mutation paths, changed subscription contexts, and restart/resubscription. The Hub routes reports without retaining their payloads or merging them.

Default and explicit subscriptions

If a protocol declares multiple SubscriptionRequest variants with effective Nil payloads, only the first one in Union declaration order is the automatic default subscription. Declaration order therefore matters.

Other subscriptions, including later Nil variants and every argument-bearing variant, require explicit invocation. The Hub does not retain default-subscription payloads or merge compatible reports. Each Control tracking admission or reconnect obtains a fresh initial snapshot from the App through the default SubscriptionRequest. The default may share one underlying stream, but each user is independently checked against that variant's AccessPrivilege before receiving current or subsequent data. A privileged user cannot authorize another user's subscription. Apps must not infer peer identity from how that stream is shared.

For native-client screen lifetime and endpoint-wide explicit release behavior, see endpoint presentation.

The server starts/renews its application stream state only after receiving the current SubscriptionRequest callback. Host or App restart does not authorize a server to emit data from remembered application state without a fresh routed subscription callback.

Endpoint runtime rules

The public SDK provides operations to:

• register an Endpoint callback;
• send Request or SubscriptionRequest data;
• send a correlated Response;
• publish SubscriptionData; and
• publish the standardized PeerAlive signal.

Follow these invariants:

• Branch on the callback action before decoding data. PeerUp, PeerDown, PeerAlive, and PeerTimeout are signals and carry no application payload.
• A server-side peer value is opaque. Retain it and pass it back unchanged. Never interpret it as an App, task, user, endpoint, session, or object ID.
• Return the exact nonzero transaction ID and peer supplied with a Request when sending its Response.
• Complete an accepted SubscriptionRequest with a correlated Response carrying the complete current snapshot, echoing its transaction ID and peer. A complete snapshot is therefore always a Response. When the same variant also delivers later complete reports, declare both Response and SubscriptionData on it. A variant that delivers only partial reports, such as a reduced or appended report, carries SubscriptionData alone and need not be a Response. Publish later changes through the report API. Sending only a report does not complete the opening transaction and can leave the client waiting indefinitely. Rejection also requires a correlated reply.
• Omit the peer for normal common reports/liveness and let the host fan out. Target a peer only with a currently valid callback-provided handle.
• Use PeerAlive when a liveness cadence is required without changed data. Never fabricate a schema-level “no change” value or resend unchanged data merely to reset a watchdog.
• PeerAlive does not update data, cache, UI, sequence, cursor, or recovery state. Protocols that need loss detection carry sequence/revision/snapshot information in real application messages.
• A client resubscribes after a delivered server `PeerUp`. It must not assume a previous server process retained stream state.

The full normative lifecycle and authorization rules are documented on LibertasEndpoint/LibertasEndpointCallback in the public SDK. Do not model private acknowledgements or host subscription records in App code.

Persistent data schemas

Persistence failure and the no-status API

By default, a Data API operation succeeds or the Hub runtime stops the affected task. Reads can also report ordinary absence. Writes and removals retain their existing no-status signatures. Failures must never appear as success, missing records, empty collections, or default values. Termination is owned and enforced by the Hub runtime, not by an SDK or App recovery handler.

The Hub distinguishes data failures internally and reports the existing runtime Error status while preserving the persisted enabled/configured status. It must not permanently disable the task in the database or automatically restart it. Starting, restarting, and enabling use the same sufficient Enable primitive. Only a third party may issue Enable after a data failure; preserving the configured enabled state never schedules it automatically. If restarted after storage repair, the App follows ordinary startup and loads persisted data. No additional recovery logic is required for an ordinary App.

Most Apps depend on persistence having succeeded before acknowledging a change or making subsequent decisions. They cannot repair the storage device, and requiring all Apps to maintain consistency across storage failure is impractical. Network interruption is different: a client can lose contact while the server still maintains authoritative state. Stopping remains the default for data failures, without erasing stored data or substituting defaults.

Explicit error-status opt-in

A public task function may declare the marker DataErrorStatus=true using @LibertasDataErrorStatus in TypeScript or #[libertas_data_error_status] in Rust. Omission retains the default. It is function-only, takes no arguments, and cannot be inherited from a type, package, or dependency. Studio validates placement, multiplicity, and marker value; the Hub runtime enforces the selected task function's opt-in.

The opt-in permits checked counterparts of every Data API operation: try… methods in TypeScript and try_… methods in Rust. They perform the same operation and return its status synchronously or through the async result. Existing ordinary calls retain their behavior, including Hub-owned termination on failure. Using a checked call without the marker is a task error, not an alternative way to bypass termination. A matching Hub and SDK with checked-operation support are required.

Rust checked calls return Result<T, DataError>; missing records are Ok(None). TypeScript checked calls return { status: DataStatus.Success, value: T } or { status: errorStatus }; a missing record is successful undefined. Writes and removals return a successful unit/void value. Removing an absent record is successful. Failure never carries usable partial read results. A failure is not a durability receipt or a guarantee that retrying an operation is safe.

An opted-in App owns deciding how to proceed after a reported failure and must preserve its own consistency: it cannot acknowledge failed persistence as saved data or treat failure as absence. The flag does not repair storage, provide a cross-call transaction, or authorize automatic task restart.

Declaring the data schema

Storage schema declarations

Every exported task function declares exactly one complete storage schema: @LibertasDataSchema(key=DataKey,value=StoredData) in TypeScript, or #[libertas_data_schema(key = DataKey, value = StoredData)] in Rust. Both named arguments are mandatory and must resolve to unions. Argument order is immaterial. The canonical schema attribute is FunctionDataSchema=key=DataKey,value=StoredData; both references retain their own dependency bindings. Studio marks only the value union LibertasData=true. TypesOnly packages have no task functions requiring this declaration.

All persistent records select variants of the value union. The key union selects key layouts. Its zero-based variant indexes provide the two-byte u16 tags, allowing at most 65,536 variants per union. A root uses the selected variant's length; a union field reserves the largest variant's payload width. Every field has a fixed width. Recursive key layouts, including indirect recursion through referenced types, are invalid.

System identity fields (User, Device, VirtualDevice, Endpoint, and LanDevice) retain their semantic types and use the signed 64-bit key codec: big-endian with the sign bit flipped, occupying eight bytes and preserving numeric order. User also represents group IDs. No NumberType attribute is needed. The same representation applies through named aliases; nullable identity fields add the ordinary one-byte presence flag. Negative IDs are runtime dynamic identities, not durable references; durable keys must use a stable App identity or a durable allocated system ID.

Keys reuse these existing attributes and the existing field/type attribute resolver; they introduce no separate precedence rules:

Bounds are static nonnegative integers; complete layouts must fit the common 32-bit encoded-size limit. A maximum of zero alone still selects the bounded layout. Explicit equal zero bounds select an empty payload. Unbounded fields, variable collections, machine-width integers, and unsupported types are rejected. A nullable field has one nullable layer; Rust nested Option types and Box types are invalid in keys. Rust derives enforce native codec requirements, and the schema traversal checks expected derives on all reached payload definitions.

Key strings and ordinary value String size constraints both count UTF-8 bytes under the shared size contract. Do not add a discriminator, byte-order, or padding attribute: variant order, type, and the common codec determine them. Published key and value roots follow the append-only evolution rule. Existing key payload layouts, including field unions and their bounds, stay fixed.

Key encoding and ordering

SQLite and TiKV compare the same encoded keys in unsigned lexicographic byte order. Compare the first unequal byte; if every shared byte matches, the shorter key comes first. Key equality is encoded-byte equality. No locale, database collation, or host endianness participates. Avro is the value/message codec; the ordered key codec has its own representation.

Each union supports discriminator values 0 through 65,535. Tags decide union order before payloads. Root variant lengths can differ, but each variant and every embedded field have a statically known width. Generated key length selection is O(1). A prefix at a field boundary selects all keys with the same leading fields; the root discriminator is part of that prefix.

Per-user key design pattern. This applies only when an App stores data that belongs to a person; an App that keeps no per-person data adds no User field. When it applies, make the record owner's User the first field of every key variant that stores a person's data, directly after the root discriminator. Then each such variant keeps one user's records in one prefix, (variant, user), so the App can find or remove all of a person's data at that person's request with one prefix target per variant. Putting all of a person's records under one variant, with the record kind as a later field, makes it a single prefix. A key whose owner appears after another field scatters that person's records across the key space.

Floating-point keys preserve every IEEE bit. Negative and positive zero are different keys; NaN signs and payloads remain distinct. Ordinary floating-point equality is therefore not key equality. Strings are neither normalized nor truncated. Reject values outside declared byte bounds. DateOnly remains a Number with its declared fixed numeric representation; ordered yyyyMMdd values follow calendar order. Enumeration and List are not supported key field kinds.

Decoders require the exact selected layout length, known tags, valid Boolean and presence bytes, valid UTF-8 for String, valid payload lengths, and zero padding. Malformed encodings are errors, never absent records. Apps can retain encoded scan keys without decoding them. Rust's separate encode/decode derives and buffer interfaces are specified in the Rust storage section and encoding buffers.

The following declaration names both persistent unions:

/**
 * Recording choices
 * Describes the sensor whose measurements the recorder saves.
 */
export interface Configuration {
    /**
     * Measurement sensor
     * The user chooses the sensor that supplies recorded temperatures.
     */
    sensor: LibertasDevice;
}

/**
 * Saved temperature
 * Represents one temperature retained from the selected sensor.
 */
export interface StoredSample {
    kind: 0;

    /**
     * Measured temperature
     * Records the temperature observed by the selected sensor.
     * @LibertasPhysicalUnit("celsius")
     */
    temperature: number;
}

/**
 * Saved recording position
 * Marks how many temperatures were safely retained before recording paused.
 */
export interface StoredCheckpoint {
    kind: 1;

    /**
     * Saved temperature count
     * Records how many temperatures were retained before recording paused.
     * @LibertasNumber(type=u64)
     */
    sampleCount: number;
}

/**
 * Saved temperature record
 * Describes recorded temperatures and the position from which recording can
 * continue.

 */
export type StoredData = StoredSample | StoredCheckpoint;

/** Persistent key kinds */
export type DataKey = { kind: 0 } | { kind: 1 };

/**
 * Record sensor temperatures
 * The recorder saves temperatures so the user can continue the same record
 * after recording starts again. The user chooses the sensor to observe. The
 * user can stop and restart recording without discarding saved temperatures.
 * The recorder automatically saves each new temperature and the latest saved
 * position. The recorder shows the latest temperature and saved count and
 * warns the user when the selected sensor is unavailable. A compatible
 * temperature sensor must remain available while recording. Developed by
 * Example Developer (example_developer).
 * @param configuration Recording choices
 * The user chooses the sensor whose temperatures the recorder saves.
 * @LibertasDataSchema(key=DataKey,value=StoredData)
 */
export function startRecording(configuration: Configuration): void {}

/// Recording choices
/// Describes the sensor whose measurements the recorder saves.
#[derive(LibertasExport, LibertasAvroDecode)]
pub struct Configuration {
    /// Measurement sensor
    /// The user chooses the sensor that supplies recorded temperatures.
    pub sensor: LibertasDevice,
}

/// Saved record identities
/// Identifies the latest temperature and the saved recording position.
#[derive(LibertasKeyCodec)]
pub enum DataKey {
    /// Latest temperature
    /// Identifies the most recently recorded temperature.
    Latest,
    /// Recording position
    /// Identifies the saved count from which recording continues.
    Checkpoint,
}

/// Saved temperature records
/// Describes temperatures and the position from which recording continues.
#[derive(LibertasExport, LibertasAvroDecode, LibertasAvroEncode)]
pub enum StoredData {
    /// Saved temperature
    /// Represents one temperature retained from the selected sensor.
    Sample {
        /// Measured temperature
        /// Records the temperature observed by the selected sensor.
        #[libertas_physical_unit("celsius")]
        temperature: f64,
    },

    /// Saved recording position
    /// Marks how many temperatures were safely retained before recording
    /// paused.
    Checkpoint {
        /// Saved temperature count
        /// Records how many temperatures were retained before recording paused.
        sample_count: u64,
    },
}

/// Record sensor temperatures
/// The recorder saves temperatures so the user can continue the same record
/// after recording starts again. The user chooses the sensor to observe. The
/// user can stop and restart recording without discarding saved temperatures.
/// The recorder automatically saves each new temperature and the latest saved
/// position. The recorder shows the latest temperature and saved count and
/// warns the user when the selected sensor is unavailable. A compatible
/// temperature sensor must remain available while recording. Developed by
/// Example Developer (example_developer).
#[libertas_export]
#[libertas_data_schema(key = DataKey, value = StoredData)]
pub fn start_recording(
    /// Recording choices
    /// The user chooses the sensor whose temperatures the recorder saves.
    configuration: Configuration,
) {}

@LibertasDataSchema(key=DataKey,value=Type) associates the function with both unions. Studio marks the value union LibertasData, matching the Rust declaration. Replace the example developer identity before publication.

Each target may be local or an external resolved App union. For payload design, follow the formatted record-payload guidance.

Keep that persistent-data Union's name versionless and invariant across App versions. Append each new persistent payload type as a new final variant of the same Union so newer App versions continue to recognize all older stored values. Do not replace it with a version-named Union or mutate an existing payload case. See the App data-type design guidelines.

Transactional key-value API

This specification describes the current development API and requires matching Hub and SDK builds with storage runtime ABI 0.4.0. The API is not yet released. There is one KV API; experimental predecessor APIs and encodings have no compatibility requirement.

A task accesses one schema-bound Data<K,V> context. Rust obtains it with libertas::data::Data::<Keys, Values>::current() after the task entry point's schema binding. TypeScript uses libertasData<Keys, Values>(). K is the key union and V is the persistent-value union. The host selects storage and owns namespace isolation and protection; Apps do not select tables or backends.

Every standalone operation declares a target. A transaction declares its target once; subsequent operations use that same target. Two forms are supported:

• Exact keys: a nonempty set of complete encoded keys, strictly increasing in unsigned lexicographic byte order, with no duplicates. Absent declared keys are protected too. A scan returns only members of the declared set.
• Prefix: every complete key beginning with the specified bytes, including absent keys. The empty prefix selects the entire task namespace. Unbounded scan endpoints mean the edges of this prefix; explicit bounds must stay within it.

Target ordering is independent of batch mutation order. Keys within an explicit set are sorted before begin; the host acquires protection consistently across hosts. Transactions are serializable within their declared domain: reads use a stable view plus the transaction's own writes, and the prefix includes gaps where another writer could insert. The host may protect a larger domain, so Apps must not assume independent targets execute simultaneously. A synchronous call that would wait behind another transaction owned by the same runtime is rejected; use the asynchronous API for queued admission. Do not hold one transaction while waiting for another on the same task context.

Transactions have one owner and execute operations sequentially. Their mode cannot be upgraded. A failed operation invalidates its transaction. Rust drops request rollback; TypeScript provides cancel() and should use an explicit commit/rollback or a finally cleanup. Cancellation cannot undo a commit that has already taken effect. A failed or cancelled commit does not prove that retrying the transaction is safe.

Scan ranges have inclusive, exclusive, or unbounded endpoints, an ascending or descending direction, and a positive limit. Returned continuation tokens are opaque and bind the context, transaction, target, range, direction, and projection. Continue using the same parameters. Standalone pages each use a new transaction; keep the scan inside an explicit transaction when all pages need one stable view. Retain encoded keys for ordering and further operations; decoding keys is optional.

Rust's default core remains single-threaded and supports no_std. With the optional tokio feature, attach a libertas::tokio::Dispatcher on the task thread, then call dispatcher.data(&data) and move the returned cloneable handle into coroutines. The same methods become async, and transaction handles remain exclusive. TypeScript's data.async() returns the Promise API. Both forms use the same eleven primitives and persistence-failure policy. Owned Avro messages cross the dispatcher boundary; storage buffers are copied or decoded before reuse. Async storage operations allow the dispatcher to continue serving other work while storage executes. Their completion has the same durability and transaction guarantees as the synchronous API.

The current host limits encoded keys to 4,096 bytes, values to 4 MiB, and command frames to 16 MiB. A key set, bulk read, or page contains at most 4,096 entries. Scan pages and bulk read values have an 8 MiB payload budget; a page may end before its requested item limit. Writes have no count limit: a write batch holds any number of mutations within its frame, and a transaction permits 16 MiB of submitted mutation bytes (keys plus values) and expires after 60 seconds. Hosts bound outstanding async requests to 256 per task context. Checked calls report ResourceLimit when applicable; ordinary failures follow the rule above.

The byte limits above are the only value size limits: clients decode and present any value within them, with no separate node-count or item-count limit.

Targets in reads and writes

This Rust fragment uses DataKey and StoredData from the declaration above. A standalone read and write each supply a target; an explicit transaction supplies it once and commits related changes together:

use libertas::data::{Data, Mode, Target};

let data = Data::<DataKey, StoredData>::current();
let checkpoint = DataKey::Checkpoint;
let target = Target::keys(&[(&checkpoint).into()]).unwrap();
let saved = data.get(&target, (&checkpoint).into());
data.put(&target, (&checkpoint).into(),
    &StoredData::Checkpoint { sample_count: 1 });

let latest = DataKey::Latest;
// Root tags are Latest = 0 and Checkpoint = 1: already in encoded order.
let related = Target::keys(&[(&latest).into(), (&checkpoint).into()]).unwrap();
let mut tx = data.begin(&related, Mode::ReadWrite);
tx.put((&latest).into(), &StoredData::Sample { temperature: 21.5 });
tx.put((&checkpoint).into(), &StoredData::Checkpoint { sample_count: 2 });
tx.commit();

Target::<DataKey>::prefix(&prefix_bytes) instead covers all keys beginning with those bytes. Construct bytes with the key codec and retain the leading field boundary required by the layout. An empty prefix (Target::all()) covers the whole task key space. Target construction checks ordering and limits; the host checks that every operation stays within its declared domain.

Data and database names

A record's identity is its encoded schema key. Human-readable labels can be constructed from decoded key fields and the App's normal localized resources; a translation never changes key bytes. The API has one ordered key space per task context. A key-union variant supplies the record category, and its fixed fields supply any additional identity or ordering. There are no separate single-record and indexed-store namespaces in this API.

Function and Endpoint permissions

A function permission constant requires a same-key nonempty reason in the package StringResources. A server Endpoint may declare downstream permissions without same-key reason resources; the selected client task must have those permissions when the relationship is configured.

Never substitute AccessPrivilege for a process permission or vice versa.

Backend-constrained choices

ConstrainedBy on a field constrains an Enumeration or Union in protocol request data. On a response, it instead constrains NextRequest actions.

The following rules describe the field-level form. Rust uses #[libertas_constrained_by("$.allowed_choices")]; TypeScript uses @LibertasConstrainedBy("$.allowed_choices"). The one quoted path is either root-relative, resolving against the current request's selected payload, or parent-relative: one or more ^ followed by named child segments, stepping from the constrained field to its actual value-tree parents. A parent-relative path lets each occurrence carry its own allowed set, for example ^.allowed_treatments naming a hidden sibling in the same List row, so rows of one type offer different choices. A typed ancestor such as ^<Row>.allowed_treatments names that parent by type instead of counting steps; Studio publishes it as the equivalent parent-relative path. It is not an expression, an interaction reference context lookup, or a list of alternatives. Each occurrence of the constrained field is filtered only by the source its own path resolves to.

The source is a non-nullable list of non-nullable integers. It must be Hidden, either directly or inside a hidden cookie. The service writes it and the user never does: populate it from backend response data through CopyFrom, including copying its containing cookie, supply it directly in EditRequest, or assign it from a field calculation reply or a link return through CopyTo under the calculated allowed sets rules. Between those writes the set is stable; ordinary editing never replaces the source or its containing data.

For an Enumeration, entries are its declared numeric values. For a Union, entries are its original schema discriminants, never positions in the filtered chooser. [1] permits only choice 1; [0, 2] permits choices 0 and 2. An absent or null source offers no choice and blocks submission with the field error, also for a Nullable field. An empty source offers no declared choice: it blocks submission for a non-nullable field, while for a Nullable field it leaves exactly one answer, null, which is how a service says the question does not apply. Duplicate entries do not create extra choices. Null is not a numeric choice; ordinary Nullable semantics apply when the allowed set is nonempty. Undefined remains unanswered and cannot be submitted for a non-nullable field.

Clients show only permitted choices and validate the selection before sending. A selected Union branch retains its ordinary editable payload and nested-field validation. A singleton allowed set does not construct an unfinished payload on the server or automatically submit the editor. Missing or malformed cookie data, an empty allowed set, or a prefilled choice outside the set blocks submission with a field error. Clients do not silently replace a conflicting prefill; the application must supply consistent values and cookies.

Singleton allowed set. When a non-nullable field is undefined and its current allowed set has exactly one entry, the client selects that choice through ordinary initialization, exactly as a Union Default selects its variant. The field is not locked: a Union branch's payload stays editable, submission still validates membership, and nothing is submitted automatically. A nullable field with a nonempty allowed set is not selected, because null is a second answer; a nullable field whose allowed set is empty, and which is unanswered, is answered with null the same way, since null is then its only answer. A value it holds outside an empty set stays a field error that the person resolves by choosing the null answer. When a calculated allowed set shrinks to one entry while the field is undefined, the same selection is part of that atomic editor change; if the set later widens, the selection stays as an ordinary one. This is a data rule, owned here and not by presentation: it writes the value whether or not the field's row is drawn, and a Display Template when_single_choice rule only decides whether to draw the row of a field this rule has answered without a payload. A scalar EnumSource host follows the same rule when its source offers exactly one selectable member; a List host never takes it.

Answered selections. A Union with a selected branch is answered, whether the branch came from a Default, a singleton allowed set, or a restored draft. When an editor opens, the client opens the first unanswered value; when a List member is added while the page is open, it opens the member's header field only while that field is unanswered. Neither opens the chooser of an answered Union: only a Union with no selection is a candidate.

Studio checks field placement, effective enum/union type (never a Bitflags catalog), root-relative and parent-relative path resolution, integer-list source shape, hidden source ancestry, CopyFrom initialization of the source or its containing cookie when a WorkflowRequest opens the request, and the calculation and link-return writers of each source in every request occurrence. Runtime clients check actual cookie values and selection membership, and reject user edits of a source. These are ordinary client data constraints; the backend continues to own application-level combination rules. Historical edits must follow the saved-page consistency rule so resumed values and allowed sets remain consistent.

Calculated allowed sets

A successful field calculation Response field may CopyTo a ConstrainedBy source, or data containing it, under the ordinary CopyTo rules. A row's own source (a parent-relative ConstrainedBy path) is written by a calculation rooted at that row, through its @-relative CopyTo, so each row's allowed set follows that row's inputs. This lets the service change which choices a page offers while the page stays open, from what has been entered so far.

Studio treats such a calculation as a writer of every field the source constrains, in addition to the source itself, for the cycle check. Consequently a calculation cannot read, directly or through other calculations, a field whose allowed set it writes: that is what makes a reply unable to trigger itself, since the acyclic dependency graph is proved with the constrained fields counted as outputs. Several calculations may write one source, or a field whose allowed set another writes; the later applied assignment wins. A written source and its constrained fields are therefore never invariant inputs, even when hidden or read-only: another calculation reading them must declare it. A link return may write a source in the same way and then counts as its writer like a calculation reply: the source and the fields it constrains are not invariant, and the re-filtering below applies.

When a client applies a result that changes a source, it re-filters every chooser reading that source. A current selection inside the new set, and its payload, are untouched. A current selection outside the new set is reset to unanswered, discarding a removed Union branch's payload with it. The field's Default applies only when the new set contains it; a Default outside the set is not applied, and a Nullable field is reset to unanswered, never to null, because null would turn a removed answer into a complete one. The singleton rule then applies to the unanswered field. That reset is an input change for calculations reading the field and propagates through the dependency graph like any other result. The reset, any singleton selection, and the assignment are one atomic editor change. While the calculation of a source is pending, the source keeps its current set: the chooser offers that set, the selection is retained, and submission validates it against the current set as usual. Only a copied result that changes the set can reset a selection.

A restored draft brings its calculated sources with it and the seeded calculations recompute them; a source no calculation writes keeps its freshly supplied value under the draft restoration rule.

Default request entry and dynamic actions

#[libertas_default_request] / @LibertasDefaultRequest marks at most one Request variant in an Endpoint protocol Union. It must carry Request, cannot be ExcludeUI or LinkOnly, and its effective payload must need no user input: Nil, or a Table whose every field is Hidden or ReadOnly and carries Fixed (including Fixed("current-user")) or a Default, applied recursively to nested Tables. The client initializes such a payload and sends it without opening an editor; a Fixed("current-user") field is filled with the authenticated user under its security constraint, so a per-user endpoint can identify the caller from its first request. It requires no reference context. A chart-producing request cannot be DefaultRequest: none of its declared NextResponse payloads may contain Chart or Chart3D, including referenced types and nested fields. Studio validates these conditions. DefaultRequest is optional; an input-free payload alone does not make a Request the default.

An explicit DefaultRequest owns initial interactive entry, including when the protocol also has a default subscription. Without the explicit marker, the existing default subscription remains the initial data source. With neither, the landing presents the available requests in declaration order, except link-only requests, using chart previews instead of rows for chart requests with executable inputs. That landing is a displayed value without data whose actions are those requests. An input-free payload alone never makes a Request the default. Invoke an explicit default request as a client-owned correlated Request, never as a pooled subscription. While pending, show loading; an error keeps retry available. A late or duplicate reply cannot reopen an interaction that the user has left. Do not automatically replay an entry request merely because a view recomposes or a subscription reports new data.

Landing forwarding. On entry, a protocol landing with exactly one eligible action always selects it without a chooser. A landing supplied by DefaultRequest or default SubscriptionData uses that value's filtered NextRequest; a request-list landing uses its discovered requests. Apply access, ExcludeUI, and ConstrainedBy where applicable, and exclude LinkOnly before counting. This rule applies to static as well as constrained action sets, independently of visible landing content. Validate and send a request with no editable input, or open its ordinary popup/editor and await submission when it has input. Defaults do not make editable fields input-free, and RequestConfirmation still requires confirmation. With no eligible action keep the landing; with several, await a choice. Chart workspaces and automatic previews retain their own entry rules. For a landing with named action controls, count the deduplicated union of requests actually offered through those controls.

The selected landing action's result is the initial working result, not another landing-forwarding step; it follows the regular response and editor rules. A plain Response, with neither NextRequest nor WorkflowRequest, is the non-transition acknowledgement and never replaces the landing, including a subscription landing. The landing and Back rule applies to every working result, including a dynamically selected resume page. For example, entry can send Enter, receive a landing offering only OpenInterview, send OpenInterview, and resolve its reply into an editing Request. The editor waits for submission; its NextRequest does not authorize automatic submission. Rendering, subscription updates, and auxiliary traffic do not repeat forwarding; initial default subscription data is used for forwarding only as part of an explicit endpoint entry, never merely because inline data appeared in the endpoint list.

Once an entry or forwarding request has been selected, never fall back to listing all protocol requests on failure. DefaultRequest does not authorize automatic submission of an editor. Existing WorkflowRequest and EditRequest replies open their editor without submitting.

A normal response with no visible content presents only its NextRequest choices, through its named action controls when it declares them; its reference context follows the interaction reference context rule. Hidden fields and hidden ancestors contribute no visible content. Nil and containers with no visible descendants contribute none; a visible scalar or List still counts even when its value is empty or null. Apply existing presentation rules recursively, including union selection. A response with visible content opens the ordinary response screen. This presentation rule does not turn a terminal acknowledgement into a navigation transition. An action response whose dynamic set is empty retains its action surface with no actions.

Single-action confirmation and input presentation

Actions chooses a request before input determines whether to send it. Count the current displayed value's eligible NextRequest choices after access, ExcludeUI, ConstrainedBy, and LinkOnly filtering, and, when the page supplies an explicit Actions array, only its members (named action controls):

The Actions tap in the one-choice case is the person's choice of that request. Merely displaying one action is not a choice and never authorizes sending. The same input rule applies to a chosen menu item, Quick Action, or declared link. The inline subscription header keeps its required drawer even for one choice; it is not the Actions button or a new landing entry.

Android, iOS, and Libertas Studio present the chosen request by its constructed input, with RequestConfirmation taking precedence over immediate sending:

Use the existing request-composition rules after initialization, including hidden subtrees and constrained choices; count input fields, not rendered layout rows. An input field is one the person can edit: a Hidden, ReadOnly, or Fixed field is not input, also when a ReadOnly field is visible. A visible ReadOnly or Fixed value is still shown, because it is visible for the person to see: a request with one editable field beside such a value uses the full request editor, not the one-field popup. Default or CopyFrom values do not remove editable input: even a completely initialized editable request waits for the person to submit its popup/editor. Cancelling or dismissing a popup or an editor sends nothing and preserves the current protocol data and reference context. One choice sends at most one request, with ordinary validation and request correlation: recomposition, repeated taps, or returning to a retained response must not replay it. A popup or an editor whose originating surface has been left or replaced cannot send.

Hierarchical single-field requests. A single editable choice field may be a non-nullable Union whose branches carry Enumerations or further such Unions. Single-field record wrappers may preserve that shape; Hidden construction fields do not add editable input. Every branch must have this choice-only shape. Other editable payloads, nullable containers, Lists, or visible ReadOnly/Fixed companion content retain the ordinary full editor. This is general one-field request composition, applicable to category/item selection as well as navigation; it requires no new attribute, grouping catalog or template opt-in.

The popup presents Union branches as expandable groups and Enumeration members as selectable leaves. Apply ConstrainedBy at every ancestor and leaf using the existing request-owned sources. Sources needed while browsing inactive branches must be available through normal construction without changing the live selection, invoking calculations, or sending domain requests to discover choices. Preserve each original Union discriminant and declared enum value; neither a flattened row position nor a label is the transmitted identity. Recursively omit groups with no eligible descendant leaf. With no leaf available, show the empty state and prevent confirmation; existing absent or invalid source errors remain applicable, with no nullable bypass or invented defaults.

Expanding or collapsing a group never selects a branch, discards another branch's payload, or sends a request. Choosing a leaf assigns the complete typed branch path and enum value atomically. Cancel preserves the prior value. The popup still requires its ordinary confirmation, validation and submission, including RequestConfirmation when declared; one eligible leaf does not authorize sending. Check current eligibility again before accepting the selection and submitting. WorkflowRequest and EditRequest entry retain their normal editor and Next control.

Above twelve permitted leaves, use the ordinary chooser text filter over localized names and descriptions, including ancestor group names. Reveal matching paths and retain the current permitted selection. Text filtering only changes visibility; it neither changes allowed sets nor makes a previously ineligible leaf selectable.

For hierarchical navigation, a group's overview must be an explicit destination leaf; its expand/collapse header is not an action. AI Search reuses this builder to construct one complete invocation for each eligible leaf of an offered action. The navigation hierarchy can therefore serve both Go to and Search without a second catalog of bound links.

Critical requests. @LibertasRequestConfirmation and #[libertas_request_confirmation] take no argument and emit {"Name":"RequestConfirmation","Value":"true"} on a protocol Request variant, the marker form of DefaultRequest and LinkOnly. Whenever a person's choice, landing forwarding, or submission is about to send a marked request, the client first shows a dialog that names the action, with its display name and description, and offers Send and Cancel. The rule holds for every entry point and every input:

Opening the dialog does not start a pending request. Cancel sends nothing and returns to the surface, the popup, or the editor as it was, with the reference context unchanged. Send validates and sends once. A dialog whose originating surface has been left or replaced cannot send.

The marker is a rule for presentation to a person and a requirement on the AI assistant. For the AI assistant, the Hub starts the generated tool's description with "Requires user confirmation." and instructs the assistant, in every turn that offers such a tool, to state the action and its values and to call the tool only after the user confirms in a later message; the Hub does not verify the confirmation. The marker does not change the wire form of the request or its validation. A program that calls the endpoint directly is not affected, and the service still validates every request. Studio rejects RequestConfirmation on anything other than a protocol variant carrying Request, and on a DefaultRequest, which the client sends by itself. A calculation request ignores the marker: when the client sends a marked variant as a calculation, it shows no dialog and asks nobody. The same variant chosen by a person, forwarded at landing, or submitted still requires confirmation.

Outside landing entry, only the person's choice sends a request without editable input. Automatic singleton selection is not such a choice: only an accepted regular Response with no visible content, no named action controls, and exactly one eligible constrained action may automatically open that action's popup or editor once. A request without editable input that it would select stays offered as the one action until the person chooses it. Visible response content, including link rows, stays displayed. Rendering, layout changes, subscription updates, and return to retained content do not select or send an action. A regular reply therefore never sends a next action by itself. Apart from the landing forwarding rule, the only requests that follow a reply without the person's choice are auxiliary field calculations and the refresh of a master-detail leading page.

Actions taps and input-based sending follow the same rule for static and constrained NextRequest sets; only constrained regular responses have the automatic input-opening behavior above. Existing explicit DefaultRequest entry, default subscriptions, and chart previews retain their own rules. WorkflowRequest and EditRequest continue to require their existing explicit editor submission.

Links

Optional linked-row highlighting uses enum/protocol associations; a Link still owns invocation and the pane contract owns placement.

A link makes a displayed node invoke one target of the same protocol when the user taps it. @LibertasLink("OpenTopic") and #[libertas_link("OpenTopic")] emit {"Name":"Link","Value":"OpenTopic"}. The target is exactly one non-empty Request variant native name of the same Endpoint protocol Union, never a list of targets; a stacked link may instead invoke a SubscriptionRequest as specified below. Place it on any field, whether a protocol payload field or a field of a reusable named type, or on a Table, Union, or Enumeration type declaration. As for inline choices, each declaration is read directly, not through effective-attribute resolution: a link on either the field or its type enables it, a field cannot switch off its type's link, and when both declare a link the field's complete declaration, including its stacking option, applies to that occurrence.

Rows carry actions only through declared links. No row action is inferred from CopyFrom: a Request whose CopyFrom resolves to a displayed value is not thereby offered on that value's row. Each occurrence has one target, so a row never opens a request chooser. The Actions surface keeps offering the displayed value's filtered NextRequest set, link targets included, except link-only requests and, when the page supplies an explicit Actions array, requests outside it (named action controls).

Direction by placement. The occurrence's placement decides how the tap constructs its target:

• On a displayed Response or SubscriptionData occurrence, including inline endpoint-list data, the tapped node is the invoking node. The client constructs the target through ordinary CopyFrom with the displayed value's interaction reference context.
• In a request editor, the host field is the invoking node. The client constructs the target from the current editor first, then the editor's reference objects in context order. The draft is read, never transmitted; only the constructed target is sent, and it must be complete and valid even while the editor is not. A transient request composer is a request editor for this purpose: a link on one of its fields is offered; an ordinary link's plain reply is a return into the composer, and its transitioning reply replaces the composer. A stacked link follows the display-only rules below.

A variant that is both displayed and edited has both placements; the operation presenting the occurrence decides which applies, and Studio validates each. Typed selectors in the target's CopyFrom bind the nearest self-or-ancestor occurrence of the named type on the invoking node's path, at any depth and across nested Lists, under the bound-occurrence rule. From Actions, a menu, automatic singleton selection, or any other entry with no tap, the selector is unbound and the next alternative applies. The binding belongs to that one construction and its reply; it is never stored or transmitted, and a later construction does not inherit it.

A link tap is a direct link under the single-action presentation rule, so a target with no editable input field sends at once. Any composer an ordinary link opens is the transient request composer above the current screen; cancelling it sends nothing and changes neither the screen nor its reference context.

Replies for ordinary links (stacked=false). The client knows which operation it sent, so the same plain Response means an acknowledgement or a return according to the screen beneath the composer:

Link return. A plain Response replying to an ordinary link sent from a stable editor assigns its CopyTo fields into that editor exactly as a calculation result does: the complete mapping is checked first and applied atomically; destinations resolve against the host field's bound occurrence, retained for the transaction; an unavailable destination rejects the whole update; and assigned values are input changes that trigger dependent calculations. The editor stays, awaits its own submission, and its reference context is not replaced; nothing navigates. A return that cannot be applied is a refused reply: the composer stays, and the editor and its draft are unchanged. A reply carrying NextRequest or WorkflowRequest transitions and never applies CopyTo; Studio rejects a link target whose NextResponse names a Response variant declaring both. Stacked links use the display-only reply handling below.

Stacked links. This is an upcoming capability. Author @LibertasLink("ViewRecord", stacked=true) in TypeScript or #[libertas_link("ViewRecord", stacked = true)] in Rust to display the reply on a read-only page above the sending surface. Availability requires stacked-link support in Studio and the client. The optional stacked argument is Boolean and defaults to false. Omission or explicit false emits exactly {"Name":"Link","Value":"ViewRecord"}, preserving existing ordinary-link behavior and schema digests. true emits exactly {"Name":"Link","Value":"ViewRecord,stacked=true"}; this is one target with an option, not a target list. A client that cannot resolve this form must display the row without a link. The option is valid wherever Link is valid.

Studio requires a stacked target to be LinkOnly and fully constructible at the invoking occurrence: every effective input field is Hidden, ReadOnly, or Fixed and filled by Fixed, Default, or CopyFrom, with no editable input. It must declare NextResponse and be either an ordinary Request whose every non-Error NextResponse variant is a Response without WorkflowRequest or CopyTo, or a SubscriptionRequest with such a completing Response as its initial snapshot. Error replies remain admitted under ordinary error/retry rules; neither target may enter through WorkflowRequest or EditRequest. Thus Request-only NextResponse variants are invalid. The completing Response may declare NextRequest: those are the new page's own actions, not an instruction to navigate away on opening. Reduced subscription reports retain their existing CopyTo lifecycle below; the display-only restriction is on the completing reply, not those later reports. Stacked targets are never offered through Actions, menus, landings, or automatic selection. A tap uses the ordinary construction, validation and RequestConfirmation rules and, with no editable input, sends at once after any required confirmation.

Each successful reply opens one live displayed page with its own title, ordinary read-only presentation, eligible links and Actions, and reference context. The sending surface remains live beneath it with its draft, scroll, validation marks, pending calculations, reference context and subscription intact. Another stacked link pushes another such page; there is no depth limit. These pages are not a history of intermediate requests: no PrevRequest control is offered, and revealing a page never reconstructs or re-sends anything. Stacking affects client presentation only and does not change AI tool eligibility, including LLMToolCall exclusion and the absence of tools for SubscriptionRequest-only variants.

Every stacked page has a platform-owned Close at the leading edge of its heading. It is not an App Request and sends nothing. Neither schema nor Display Template rules may suppress or remove it; the template's button_labels.close may change only its caption, with the ordinary platform-caption fallback. While idle, Close, native Back, Escape, and iOS swipe-down pop exactly that page, release it, and reveal the same live surface beneath; closing the bottom stacked page returns to the underlying editor or displayed value. The accessible name combines the localized platform Close caption and page title, for example “Close Record”; the control is focusable in tab order, Escape is supported, and assistive technology announces the pop. Studio/web places the page in an overlay inside the endpoint working surface, Android pushes it above that surface with Close in its top bar, and iOS presents it as a sheet at compact width and, at regular width, inside the sending pane's own container with Close in that pane's navigation bar. In master-detail a stacked page covers only the pane that sent it on every client; the other pane stays interactive.

A SubscriptionRequest target starts demand through the normal client subscription lifecycle on opening. Its completing Response is the first state of that page's own SubscriptionData snapshot; compatible reports and reduced reports update that snapshot under the existing rules. Updates never navigate or overwrite the underlying editor or another stacked page. Closing or releasing the page ends its demand through the existing subscription release lifecycle, including that lifecycle's Hub-version and endpoint-wide release scope. Subscription ownership and demand remain runtime-only, are never persisted, and are rebuilt only through normal subscription lifecycle.

Installing a non-stacked destination from any stacked page navigates away: an ordinary Link or selected NextRequest action that opens a non-stacked working editor or page releases every stacked page and their underlying editor or displayed working value. A transitioning Response, WorkflowRequest or EditRequest reply does the same. Place the destination by the pane rules. A transient input chooser or composer alone is not a working destination; cancellation before navigation, including RequestConfirmation cancellation, keeps the current surface under the existing rules. The initial stacked reply's NextRequest supplies page actions and does not itself navigate away; live reports likewise do not navigate. Ordinary acknowledgements retain their existing non-transition behavior. Departing drafts follow the existing draft lifetime and editor-state rules: a transitioning link reply retains an unsubmitted CacheIdentity draft for recovery; without CacheIdentity unfinished edits are discarded. No new prompt is added.

Each page owns at most one pending operation under operation ownership. While a stacked link is pending, the sending editor blocks Submit, Prev and other links; its auxiliary calculation replies still apply and subscriptions may refresh underneath. A page awaiting a sent operation cannot be dismissed alone; exit while pending leaves the endpoint and releases the entire stack. Replies and updates for a popped or otherwise released page are dropped and cannot navigate, refresh another page, or overwrite a replacement editor.

Ownership. A link is a pending transition owner beside workflow Submit and Prev under operation ownership. An editor has at most one pending transition; while a link is pending, Submit, Prev, and other links are blocked. Before submission, cancelling its composer discards that draft and releases the transition without a waiting spinner. After submission, its panel progress and endpoint exit follow the ordinary ownership rules. Calculation replies stay auxiliary and still apply unless the editor was replaced. A late or duplicate link reply cannot replace a superseded editor or screen.

Presentation. Link rendering owns how a link appears: it never removes its row's label or value, and it never edits its field. A Hidden occurrence, or one under a hidden ancestor, has no row, so Studio rejects a link there. On a Response or SubscriptionData, a link row is offered only while its target is in the displayed value's filtered action set. In a request editor the link is offered only when the target passes the same access and ExcludeUI filtering; an editor has no ConstrainedBy set. Visible regular-response content, including link rows, remains displayed even when only one action is eligible; the person opens that action through Actions.

#[derive(LibertasExport, LibertasAvroDecode, LibertasAvroEncode)]
#[libertas_link("OpenTopic")]
pub struct TopicRow {
    #[libertas_read_only]
    pub title: String,
    #[libertas_hidden]
    pub section: TaxSection,
}

// Variants of the Endpoint protocol Union:
#[libertas_response]
#[libertas_next_request("OpenTopic")]
Hub { topics: Vec<TopicRow> },

#[libertas_request]
OpenTopic {
    #[libertas_hidden]
    #[libertas_copy_from("^<TopicRow>.section")]
    section: TaxSection,
},

#[libertas_request]
EditHousehold {
    #[libertas_link("LookupAddress")]
    zip: String,
    city: String,
},

#[libertas_request]
#[libertas_next_response("AddressFound")]
LookupAddress {
    #[libertas_hidden]
    #[libertas_copy_from("$.zip")]
    zip: String,
},

#[libertas_response]
AddressFound {
    #[libertas_copy_to("$.city")]
    city: String,
},

Every member row of topics opens OpenTopic, whose ^<TopicRow>.section reads the tapped member's section; OpenTopic has no editable field, so the tap sends at once. In the EditHousehold editor, the zip row offers LookupAddress, which copies the draft's zip and sends at once; the plain AddressFound reply returns its city into the editor, which stays open.

Studio validation. For each link occurrence Studio checks that:

• the value names one Request variant of the same Endpoint protocol Union, or a SubscriptionRequest for a stacked link;
• on a Response or SubscriptionData occurrence, the containing variant's NextRequest lists the target; in a request editor the target may be any Request variant, or a SubscriptionRequest for a stacked link;
• the target's CopyFrom selectors resolve for that occurrence under the bound-occurrence rule: the named type occurs on the invoking path, the suffix exists, and types and nullability are compatible;
• for an ordinary link in a request editor, every CopyTo of the target's plain NextResponse Response variants is valid against the originating request as calculation CopyTo is: the destination exists, and type, nullability, numeric semantics, money currency, Fixed protection, and CacheIdentity protection are compatible; it may write a calculation's destination (the later assignment wins) or a ConstrainedBy source; every direct payload field of such a Response has CopyTo or is Hidden (discriminators and Error responses are exempt);
• no NextResponse Response variant of the target declares CopyTo together with NextRequest or WorkflowRequest;
• the occurrence is not Hidden or under a hidden ancestor, and its containing variant can be displayed as rows: a link on an Error Response or on a Response carrying WorkflowRequest has no row and is rejected; and
• a stacked link satisfies the additional stacked-link constraints, rather than the ordinary plain-response link-return constraints.

Existing Apps that relied on rows tappable through CopyFrom alone must declare links.

Link-only requests. @LibertasLinkOnly and #[libertas_link_only] take no argument and emit {"Name":"LinkOnly","Value":"true"} on a protocol Request variant, or a SubscriptionRequest variant targeted by a stacked link. A link-only target is offered only through declared links. Every Response or SubscriptionData that lists it in NextRequest still governs its availability through the filtered action set, so a link row targeting it is offered only while it is in that set. The Actions surface, menus, endpoint landings, and automatic singleton selection never offer it, and it is not counted when deciding whether a constrained set has exactly one action. A filtered set holding only link-only requests leaves the Actions surface with no actions while its link rows remain. Use it for a request that exists only to be opened from rows, such as a fieldless request a row tap sends at once, so that it does not also appear as a second Actions entry. A link-only target cannot be DefaultRequest, and it cannot carry ExcludeUI, which would also hide its links. Studio rejects LinkOnly on anything other than a protocol Request or a stacked-link-targeted SubscriptionRequest variant, on a target that no link in the same protocol targets, on a target that is also DefaultRequest, and together with ExcludeUI. Clients that predate the marker ignore it and keep offering the request in Actions; the request remains valid there, so adding the marker changes presentation only.

Request editor variant identity

A request editor composes exactly one protocol variant, fixed by its entry point: a chooser selection, a direct link, or a server-delivered EditRequest or WorkflowRequest. A default request is sent without an editor, so it is not an editor entry point; the editor that follows default entry is installed by its reply. The editor's root row is that variant, never a selector over the Endpoint protocol Union. Android, iOS, and Libertas Studio must not offer the protocol's other variants from the root row, on tap, long-press, or any other gesture, and must not render the root with a selectable-union affordance. Changing the request type means leaving the editor and choosing another action. Unions inside the request payload keep their ordinary variant selection. The Actions surface belongs to an accepted response only; a request editor has none, so nothing in it may open an action chooser or navigate to another request except a declared link or a declared previous action. A link is neither the Actions surface nor a chooser; links and previous actions are the only ways an editor opens another request.

Control endpoint landing and native Back

A task with multiple endpoints opens an endpoint list. Default subscription data may be displayed directly under an endpoint in that list; only this inline subscription data also serves as that endpoint's landing. Do not create a duplicate subscription landing when its endpoint header is tapped.

Other landing content, including chart workspaces and workflow editors, is entered when the endpoint is tapped and displayed above the endpoint list. With exactly one endpoint, enter its landing directly, including a subscription-data landing: never create, display, or retain an endpoint-list screen underneath it.

The endpoint defines its landing entry independently of later interactions. There are exactly two landing kinds, determined by the operation actually sent for default entry, never by a response variant or a later working page:

• Subscription landing: the selected default entry request was sent as a SubscriptionRequest. Retain that live page underneath at most one working page, including its subscription owner, reference context, layout, and scroll position. Later working results replace that working page, never the subscription landing. Inline default data uses its existing endpoint-list location as the retained landing, without creating a duplicate page.
• Non-subscription landing: default entry uses an ordinary Request, or no default is selected and entry begins with the request list. The initial landing page is the working page; later interactions replace or update that one page, without retaining the initial page underneath it.

A working reply cannot redefine either landing or become its entry source. Fresh endpoint entry has no reference context from an abandoned page; never construct it from that page's response or cookie. A working subscription cannot overwrite the retained default subscription's snapshot.

Clients keep no history of intermediate working pages and do not remember or compare an initial message type for navigation. Live stacked-link pages are temporary displays above this working surface, with local pop-only dismissal. The service may select a different initial or resumed working page for each endpoint entry.

The reply to landing entry itself can be displayed without NextRequest; do not suppress it as an acknowledgement of a previous screen. A plain Response to a selected landing action remains the non-transition acknowledgement and leaves landing in place, under the forwarding rule. An explicitly selected SubscriptionRequest installs its completing Response as the first state of its own SubscriptionData snapshot, whether or not it declares NextRequest; that reply is stable rather than an acknowledgement. A failure or Error preserves the originating page under ordinary retry rules.

For native Back at the bottom working page of a Control endpoint:

• Exit that endpoint immediately, regardless of the displayed message type, payload, workflow step, or resume state. Return to the endpoint list for a multi-endpoint task, or exit the task for a single-endpoint task.
• Do not reveal or restart landing, repeat entry or forwarding, or send a PrevRequest. From the endpoint list itself, exit the task.
• A stacked idle composer, picker, modal, chart, or stacked-link page closes first and reveals its underlying live page. A sent request instead follows exit while pending; its surface cannot be dismissed alone.

The selected landing action's result follows ordinary response presentation. Other endpoints and their default subscriptions retain their own ownership.

These rules apply to the Back button and system back navigation alike. A transient request composer first follows its cancellation and pending-response rules. A local picker or modal retains its ordinary dismissal behavior. Abandoned pending replies, calculations, and explicit subscriptions cannot navigate or overwrite the new entry or another interaction. Back does not undo a request already accepted by the backend. Workflow PrevRequest remains a separate explicit protocol action.

Response action constraints

On a Response variant, ConstrainedBy constrains NextRequest instead of a field choice. The response must declare NextRequest and cannot carry WorkflowRequest or Error. Its one root-only path resolves against that response payload to a hidden non-nullable list of non-nullable plain integers, using the same source shape and path grammar as field-level ConstrainedBy.

NextRequest declares the complete possible action set and its display order. The ConstrainedBy array supplies membership only: its order never reorders actions. For example, NextRequest A,B,C with allowed discriminants for C,A displays A,C. No separate order attribute is needed. Each integer in the response's allowed array identifies an original protocol Union discriminant of the server schema, never a position in NextRequest or a filtered action list; a client App whose protocol arranges the Union differently reads it under the capability prefix rule. Union members carry explicit consecutive Discriminator values starting at zero; Children are pre-sorted by that value. Runtime initialization, legacy-schema fallback, and the separation from payload Fixed constraints are defined in Unions. Only declared actions in the allowed set are displayed, after the ordinary access and ExcludeUI restrictions. An empty array is valid and means no actions; duplicate entries do not duplicate actions. Landing uses its separate forwarding rule. On a regular response, if the constrained set, after access and visibility filtering and without link-only requests, contains exactly one action, keep the response visible when it has visible content, including link rows. Choosing Actions opens that request directly, without a chooser. Only a response with no visible content and no named action controls automatically selects its sole action once for that accepted response, then applies the single-action presentation rule: one popup-eligible field uses the existing one-field popup, and complex input uses the full editor. Automatic selection never sends: a request without editable input stays offered as the one action and is sent when the person chooses it. Never auto-submit a workflow editor or serialize an unfinished request. Rendering or returning to the same retained response must not repeat the selection. A subscription update re-filters the actions and never selects one, also when it leaves exactly one: automatic selection happens only for an accepted correlated Response without visible content, because auxiliary traffic never navigates. Use the visible-content definition under default entry; the initial working result after a landing action follows this same rule; the landing action source uses its forwarding rule. Without ConstrainedBy, NextRequest remains static. Missing, malformed, out-of-range, or undeclared entries refuse the whole reply or update before it takes effect: the prior surface, its reference context, its actions, and any draft stay. Clients never fall back to the unconstrained set.

The set belongs to the installed response and is replaced only with a newly accepted response or subscription update. It is not evaluated against an editor or another interaction. An update that removes a request from the set neither leaves nor replaces the surface: a popup, editor, or confirmation dialog already opened for that request may still send it, and the service checks it as it checks every request. Every action entry point, including declared links on its rows and menus, uses the same filtered set. Backend authorization and state checks still apply when a selected request arrives.

#[libertas_response]
#[libertas_next_request("Start,Resume,Review")]
#[libertas_constrained_by("$.allowed_actions")]
Actions {
    #[libertas_hidden]
    allowed_actions: Vec<i32>,
    #[libertas_hidden]
    cookie: String,
}

Studio checks response placement, NextRequest presence, exclusions, source resolution, and hidden integer-list shape. Clients validate entries against declared actions before installation.

Named action controls

A displayed Response or SubscriptionData with NextRequest may declare named action controls on direct Hidden fields of its payload record. A named record used as the payload is also valid. Each field is a non-nullable List of non-nullable plain integers and carries one #[libertas_action_control("sections")] or @LibertasActionControl("sections"). A control name is a nonempty, case-sensitive identifier ([A-Za-z_][A-Za-z0-9_]*), unique on that page. Actions names the built-in control; other names declare additional controls. Error and WorkflowRequest pages cannot use this attribute. On a dual-role variant it applies only while the value is displayed, never in its Request editor. Hidden keeps the source list out of content and editors; the marker creates a separate control for its choices.

The App supplies each control's current membership as original protocol Union Request discriminants of the server schema in the marked field, read under the capability prefix rule. The field array never names a NextRequest position or changes order. Start with NextRequest, apply the response's existing ConstrainedBy ceiling, access and ExcludeUI restrictions, then intersect each control with its own array. LinkOnly requests are absent from every control. Duplicates collapse; an empty array hides only that control. Without an Actions field, Actions offers the shared eligible set. A named control does not remove its requests from Actions. To separate the controls, the App supplies an explicit Actions array. Links continue to use the shared response set independently of control-specific arrays.

A missing, null, malformed, out-of-range, or out-of-NextRequest member rejects the entire reply or subscription update before installation. A client keeps the prior page, reference context, controls, and draft through the ordinary failure procedure. Every accepted update replaces all arrays together; an open chooser re-filters before selection. An already-open composer or confirmation follows the normal response-action lifetime rule. The service still authorizes and validates every selected Request.

Zero eligible choices hide a control; one choice selects its Request directly on tap; several open the ordinary ordered chooser. The Request owns its CopyFrom, field ConstrainedBy, inputs, confirmation, validation, and submission. A control has no tapped data row or bound List member and never borrows another panel's unfinished editor values. A regular page declaring any ActionControl stays displayed even when it has only one eligible request and all ordinary content is Hidden. Rendering, caption changes, and subscription updates never activate it. Pages without this attribute keep the preceding automatic presentation rule.

On landing entry, count the deduplicated union of actual targets offered by its controls, including implicit Actions. LinkOnly and requests omitted from all controls do not count. The ordinary landing forwarding rule then applies once. A retained subscription landing never forwards again. Named controls do not change landing kind, native Back, interaction correlation, or the Next submission control of an embedded editor. See action-control presentation for captions, placement, and template customization.

AI Navigation and AI Search

Control AI requires a signed-in user with a configured, supported and enabled language-model connector assigned to that user. Administrative admission is not required. Clients treat AI as unavailable on each new connection until the Hub reports availability for that session, and follow changes to the user's connector, configuration and login permission. Availability describes usable configuration; provider connection failures still appear as ordinary request errors.

This session requirement applies to Assistant messages, tool-catalog queries, AI Navigation and AI Import. Automatic tool-catalog loading waits while AI is unavailable. Schema-eligible controls may remain visible; activating an unavailable AI feature reports an immediate error and sends no AI request. Reconnecting requires a fresh availability report. While AI is unavailable, clients do not apply AI replies to the working page or editor. Page eligibility and operation-specific permissions remain separate requirements.

Studio and the web interface hide Search when it is disabled, unavailable or ineligible on the current page. Ordinary page layout and availability updates do not construct navigation candidates or speech hints. Opening Search by an explicit tap prepares its speech hints only when Search is enabled and available; submitting a query constructs and validates the current candidates.

AI Navigation and AI Search name the same capability: use a person’s text or editable voice transcript to select an existing offered link or action. The App supplies destination meaning; the client constructs and validates complete requests before selection; AI returns only candidate identifiers. A candidate is one offered invocation and binding or finite chooser leaf, so two links to one Request with different bound topics, or two eligible leaves of one action, are distinct candidates.

After an editor opens, its optional leading-row selection follows the enum/protocol association, independently of the navigation entry path.

This feature requires an implementing client and a supporting modern Hub. It is unavailable on legacy Hubs and on non-task pages. An offered GoTo action control enables Search on its owning task page, using the same currently eligible choices. App guidance is optional. A resolved Union or page prompt also opts a task page into Search when it has no Go to control. Hub policy may disable it. Search and task-scoped Assistant are independent features. A navigation prompt does not grant access or enable tool execution.

Search opens a secondary text/dictation composer without changing the working page, panes, or scroll position. Recording starts only on explicit microphone action; stopping retains an editable transcript and never submits. Typing works without microphone permission. Search requires explicit submission. No match or a transient failure retains the query and page. An explicit Ask Assistant handoff is available only when Assistant is available in the stated scope; a failed search never executes tools automatically.

Each Search is a fresh model operation with no prior conversation, tool calls, or request history. The current selector uses a configured OpenAI or Gemini connection; a missing or unsupported connection reports a failure and retains the query. The complete serialized search context is limited to 256 KiB of UTF-8 and 256 candidates, after the semantic projection described below. If that projection still exceeds either limit, the client reports that the search context is too large, retains the query and working page, and sends no AI request. An oversized context is distinct from an unavailable Search feature. Clients must not silently drop destinations or their distinguishing meaning to fit the limit. Voice recognition uses the offered destination names and documented domain references through the recognizer’s supported bias API.

Prompt attribute and composition

The schema attribute is AINavigationPrompt, whose value is one key in the declaring package's StringResources. The source spellings are:

It may occur on the protocol Union and on a page-defining protocol variant. Each location has at most one declaration. Several pages may reference the same resource key. A request editor uses its own Request variant's page declaration; an instruction that opens that editor does not become its page. A synthetic request-list landing has only the Union declaration available.

Resolve the Union and current page resources through ordinary localization, in that order, and concatenate their texts with a blank line. Both declarations contribute. Page guidance adds local meaning and can refine common selection preferences; it does not erase the Union guidance. An absent declaration contributes nothing. Either declaration suffices to opt the page into AI Navigation. An offered GoTo control also enables it with neither declaration; the platform uses the ordinary destination labels, descriptions and current eligible choices. With no offered Go to and neither declaration, the page does not offer it. A control with no eligible choices does not establish availability. Detect the case-sensitive control name GoTo, independently of its localized or template caption and placement.

This is an additive rule, not ordinary nearest-attribute replacement. Keep the two declaration locations through resolution. Reuse the normal package and locale resolution rules; do not implement a separate translation catalog. Studio must validate placement, a nonempty key, and an existing nonempty StringResource. A client that cannot resolve the applicable prompt reports the configuration failure and does not send an AI request.

The App authors the resource at development time; a navigation prompt takes no runtime message arguments. Runtime page and item values are supplied separately as data. The platform supplies the general selection instructions and result format. App guidance and runtime text cannot expand the candidate set or change construction, access, validation, confirmation, or submission rules. The existing LLMToolCall attribute continues to control Hub tool projection; it is not this page opt-in.

Candidate discovery and assembly before AI

1. Identify the page that owns the search and its current interaction context. Discover its actual link occurrences and offered action-control choices.
2. Apply the existing NextRequest, shared response ConstrainedBy, access, ExcludeUI, and visibility rules. Respect each action control's membership. For an offered action that qualifies for the hierarchical single-field builder, reuse that builder's current eligible leaves and construct a detached, complete request for each leaf. Apply every ancestor and leaf constraint, and retain its exact Union discriminants, Enumeration value, localized label, descriptions and group path. An empty chooser supplies no candidate. Do not enumerate raw schema choices or expand requests with other editable input. This does not expand actions from an editable workflow page. A LinkOnly target is eligible through its actual declared link, never as an invented unbound action. Control-specific arrays do not restrict independent links; the named-control contract continues to own that distinction. Folding and scroll position do not remove an otherwise available link; a Hidden occurrence is not a link.
3. Construct every candidate request through ordinary initialization, CopyFrom, defaults, Fixed values, and the authenticated current user, with the candidate's actual binding. Check the complete value against the request's structural and semantic validation rules.
4. Exclude a candidate whose request cannot be fully assembled and validated. Do not ask the model to fill a missing field, invent a binding, or choose new arguments. Do not send domain requests or calculations just to search for additional candidates. With no valid candidate, report no available match without invoking AI.
5. Assign each remaining occurrence an identifier local to this selection attempt and retain its complete request, origin, and bindings in the client. A request variant alone is not a sufficient identifier.

Eligibility is evaluated before the AI call, including when there is only one candidate. A search does not follow that candidate unless it matches the user's intent. App-wide coverage requires the App to expose the intended destinations through links or finite chooser actions from the page offering that scope. The client does not traverse unoffered pages or combine raw enum values into speculative links.

The pane ownership contract still applies. Search over the leading page uses its context and controls; it does not borrow unfinished values from the trailing editor. A selected destination uses the resolved editing Request's Display Template relationship after WorkflowRequest or EditRequest resolution, including direct entry into another section. Rendering, prompt resolution, and subscription updates do not start a search or invoke a link.

Navigation context supplied to AI

The client assembles one context for each selection attempt:

Derive candidate meaning from the bound schemas, extracted documents, and current data. Resolve StringResources and FormattedText through the normal rendering rules. A Boolean or null row value is sent as its field's declared answer label where one exists. Retain schema descriptions even when a template changes the visible label. Follow the actual selected members and bound occurrences; collecting only a generic request description loses the destination's meaning. Candidate request schemas may be projected to the descriptions and typed values needed for selection; the full wire payload is not an AI input.

Supply enough context to distinguish all offered candidates, rather than dumping the package's unrelated schemas or all return data. Keep credentials, authentication identifiers used only for construction, and opaque continuation values in the client. A domain identity needed to distinguish links can use its ordinary meaningful display value. Treat user and response text as data, not as authority to change the selection contract.

Send each destination's documentation once, however many UI sources offer it. The context carries destinations, one entry for each distinct destination: {id, label, description, meaning}, where the meaning holds its documented aliases, selected group path and selected Enumeration member and Union group descriptions. Each candidate is {id, destination, label, description, meaning}: destination names its entry, and the candidate's own label, description and meaning hold only what differs for that invocation, such as a link row's caption and its bound row values. Two candidates for one destination, for example a Go to chooser leaf and a link row, keep distinct identifiers and share one entry. Within an entry, a finite chooser's selected member and group descriptions appear once; do not append the chooser's concatenated path description again. Two destinations are the same when they construct the same target request variant with the same selected chooser members and bound values. The size limit is a check on this semantic projection, not a reason to truncate the eligible candidate set or send a full request. This projection is local to Search. Preserve the source comments and extracted documents used by ordinary field help, manual chooser filtering, Assistant tool descriptions, AI Import, and contextual dictation; reducing a search payload must not shorten their shared documentation. Dictation must still receive the offered destination names and documented aliases from the projected meaning.

Selection result and invocation

The logical JSON result is an ordered array of zero or more candidate identifiers, for example:

{"links":["L7","L12"]}

Return {"links":[]} when no candidate adequately matches. Return one identifier when the choice is sufficiently clear, or several ranked alternatives when user choice would help. Multiple candidates are alternatives, never a batch to execute: show their ordinary destination labels and relevant distinguishing context, and invoke only the one the person selects. A provider adapter may encode this logical result in its supported structured-output format. The result contains no request payload or field patch. Reject unknown or repeated identifiers, additional request values, malformed output, and results belonging to an invalidated selection attempt. Model failure or no match leaves the current page in place.

Before acting, verify that the originating page, binding, eligibility, and assembled request still match the selection snapshot, and feature availability still permits the action. Recheck after a person chooses from multiple results as well as after the AI reply. A replacement page, changed request value or choice set, or removed bound item invalidates the old selection; use the existing operation-ownership rules rather than a new recovery state machine. The client then invokes the selected occurrence once through the normal link/action path, including validation, RequestConfirmation, pending-operation ownership, cancellation, and reply classification. The service still authorizes and validates the request.

Auto-assembly does not change auto-submission. A request with no editable input follows the normal send-on-selection rule, subject to confirmation. Selecting a candidate for a finite chooser leaf selects that complete choice; it sends the already constructed request directly through the ordinary action path, retaining any RequestConfirmation. It does not reopen the chooser. Other populated editable fields still require the ordinary popup/editor submission. WorkflowRequest and EditRequest still open editors awaiting submission. AI Navigation neither submits another editor nor replaces its Next control. Landing forwarding and native Back keep their existing rules.

App and CodeBot authoring obligations

Follow the existing source-documentation contract. Ordinary private code comments are not extracted navigation knowledge. Missing domain meaning must be authored; collecting more schema does not create it.

For the Tax App, statutory references, form/schedule numbers, formal names, abbreviations, and common names must all be useful ways to find supported topics. A description can connect a qualified-business-income destination to Section 199A, Form 8995/8995-A, and QBI. These associations identify a topic; they do not assert that a taxpayer qualifies for a deduction. The actual destination, jurisdiction, tax year, and supported scope come from the App. When several topics share a form or citation, supply enough context to select the appropriate topic or its available overview, or offer the relevant alternatives for the person to choose. Multiple OpenSection links must carry their individual topic meaning.
